Contact Block 1 NO for 22.5mm Operators | Gold Contacts | Low Voltage by NHP
Contact block with 1 NO configuration and gold contacts—ideal for industrial control panels and machinery. Built for enhanced conductivity and reliability, designed for 22.5mm operator devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

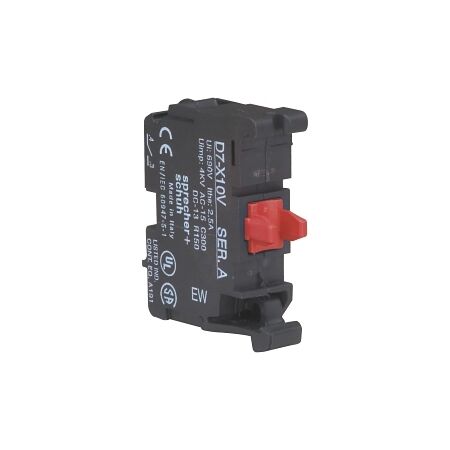

Product Name/Title: Sprecher and Schuh D7 Contact Block 1 NO for 22.5 mm Pushbutton Operators Gold Contacts Low Voltage
Brand: NHP
SKU: D7X10V
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, Pushbutton Contact Block
Technical Specifications
- Number of Contacts: 1 NO
- Rated Insulation Voltage: 150 V
- Rated Operation Current at 40°C: 2.5 A
- Rated Operation Current at AC 15, 120 V: 3 A
- Rated Operation Current at AC 15, 240 V: 0.75 A
- Rated Operation Current at DC 13, 125 V: 0.22 A
- Minimum Contact Rating Current: 1 mA
- Minimum Contact Rating Voltage: 5 V
- Dimensions (H x L x W): 22.5mm x 50mm x 22.5mm
- Weight: 0.2 kg
Key Features
- Designed for 22.5mm operator control devices.
- Gold contacts for enhanced conductivity and reliability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and automation systems
- Commercial: Building management systems and equipment control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block 1 NO for 22.5 mm Pushbutton Operators is available now for immediate purchase, ideal for industrial and commercial control applications.
