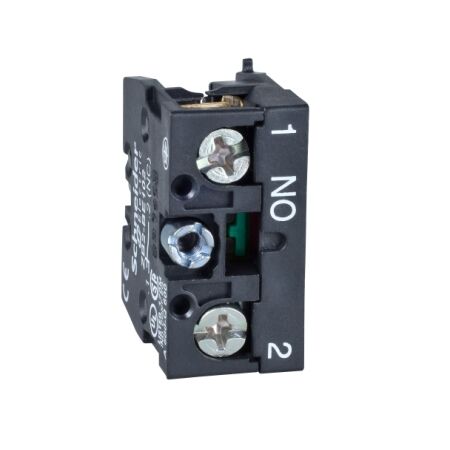

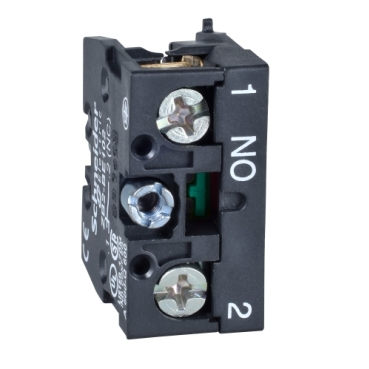

Contact Block 1N/O | 10A Rated | IP66/IP67 Protection | by Clipsal
The Contact Block 1N/O is designed for reliable operation in industrial control panels and automation systems. With a robust design, it features a single normally open contact configuration and is compatible with 22mm XB4 and XB5 series. Rated for 10A operational current and IP66/IP67 protection when installed, this block ensures secure wiring and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contact Block 1N/O | 10A Rated | IP66/IP67 Protection | by Clipsal
Brand: Clipsal
SKU: SCHZB2BE101
Alternatively Known As: Schneider ZB2BE101, 1NO Contact Block, Auxiliary Contact Block, XB4 Contact Block, XB5 Contact Block, Clipsal SCHZB2BE101
Technical Specifications
- Contact configuration: 1 Normally Open (1N/O)
- Mounting: Rear mounting on XB4/XB5 operators
- Terminal type: Screw clamp terminals
- Rated operational current: 10A (AC-15), 6A (DC-13)
- Rated operational voltage: 600V AC max
- Mechanical durability: 10 million operations
- Conductor size: 1 x 0.22...2 x 2.5 mm² (AWG 24...AWG 14)
- Operating temperature: -40°C to +70°C
- Degree of protection: IP20 (terminals), IP66/IP67/IP69K (when installed in operator)
- Dimensions (H x L x W): 40mm x 30mm x 17mm
- Weight: 0.1 kg
Key Features
- Single normally open (1N/O) contact block
- Compatible with 22mm XB4 and XB5 series
- Screw terminal connection for secure wiring
- Easily mounts to the back of high power switching contacts (ZBE50x)
- Robust design for industrial environments
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery and automation systems
- Electrical switchboards
- Replacement or expansion of existing control stations
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and electronic waste.
- RoHS compliant materials minimize hazardous substances.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Contact Block 1N/O SCHZB2BE101 is available for immediate purchase. Ideal for industrial control panels, automation systems, and electrical switchboards.
