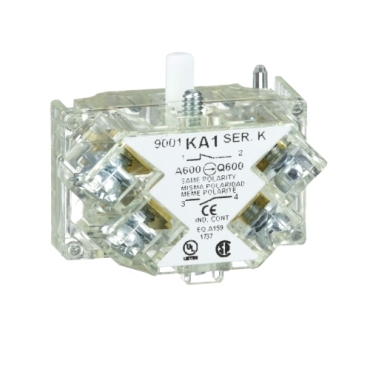

Contact Block 1NO/1NC | 600V AC Rated | Snap-On Mounting | High Mechanical Durability | @Pack of 1 | by Clipsal
The Contact Block 1NO/1NC is designed for reliable operation in industrial control panels and automation systems. Featuring a 600V AC rated voltage and a snap-on mounting for easy installation, this block ensures high mechanical durability with a lifespan of 1,000,000 operations. Ideal for use with Clipsal 9001 series devices, it provides clear contact status indication and is compliant with AS/NZS 60947 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contact Block 1NO/1NC | 600V AC Rated | Snap-On Mounting | High Mechanical Durability | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH9001KA1
Alternatively Known As: Clipsal 9001KA1, 1NO 1NC Contact Block, Auxiliary Contact Block, Pushbutton Contact Block, SCH9001KA1
Technical Specifications
- Contact configuration: 1NO + 1NC
- Rated operational voltage: 600V AC max
- Rated operational current: 10A
- Mounting: Snap-on for 9001 series devices
- Mechanical life: 1,000,000 operations
- Terminal type: Screw clamp
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 40mm x 20mm x 30mm
- Weight: 0.1 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration
- Snap-on mounting for easy installation
- High mechanical durability for frequent operation
- Suitable for use with Clipsal 9001 series pushbuttons and selector switches
- Clear contact status indication
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with control panel assembly.
Applications
- Industrial control panels
- Switchgear assemblies
- Automation systems
- Electrical distribution boards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Durable construction reduces replacement frequency and electronic waste.
- Reliable operation helps maintain energy-efficient control systems.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCH9001KA1 Contact Block 1NO/1NC is available for immediate purchase. Ideal for industrial control panels, automation systems, and switchgear assemblies.
