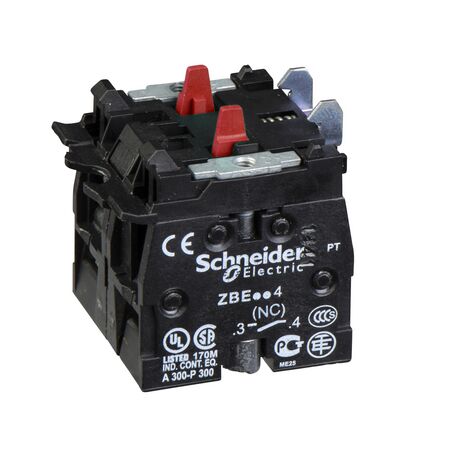

Contact Block 2 NC High Current | 10A Rated | Snap-On Mounting | by Clipsal
The Contact Block 2 NC High Current is designed for reliable circuit breaking in industrial applications, featuring 2 normally closed contacts and a high current capacity of 10A. Ideal for use in control panels, motor starters, and automation systems, this robust block ensures long operational life and easy snap-on installation, making it a perfect choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contact Block 2 NC High Current | 10A Rated | Snap-On Mounting | by Clipsal
Brand: Clipsal
SKU: SCHZBE504
Alternatively Known As: Clipsal 2NC Contact Block, Schneider ZBE504, High Current Contact Block, Industrial Contact Block, Pushbutton Contact Block
Technical Specifications
- Contact configuration: 2 NC (Normally Closed)
- Rated operational current: 10A (AC-15), 6A (DC-13)
- Rated insulation voltage: 600V
- Mounting: Snap-on for pushbutton stations
- Terminal type: Screw clamp
- Conductor size: 1 x 0.22...2 x 2.5 mm² (AWG 24...AWG 14)
- Mechanical durability: 10 million cycles
- Standards: IEC 60947-5-1
- Dimensions (H x L x W): 40mm x 30mm x 17mm
- Weight: 0.1 kg
Key Features
- 2 Normally Closed (NC) contacts for reliable circuit breaking
- High current capacity for demanding industrial applications
- Snap-on mounting for easy installation
- Robust design for long operational life
- Compatible with Schneider Electric and Clipsal pushbutton stations
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial control systems.
Applications
- Industrial control panels
- Motor starters
- Switchgear assemblies
- Automation systems
- Machinery safety circuits
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and electronic waste.
- Reliable operation minimizes downtime and energy loss in industrial systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHZBE504 Contact Block 2 NC High Current is available for immediate purchase. Ideal for industrial control panels, automation, and machinery safety circuits.
