Contact Block Base Mount 1 NC | 22.5mm Pushbutton | Easy Installation by NHP
Contact block with base mounting and 1 normally closed contact—ideal for industrial control panels and automation systems. Built for reliable operation, with easy installation for 22.5mm pushbutton operators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

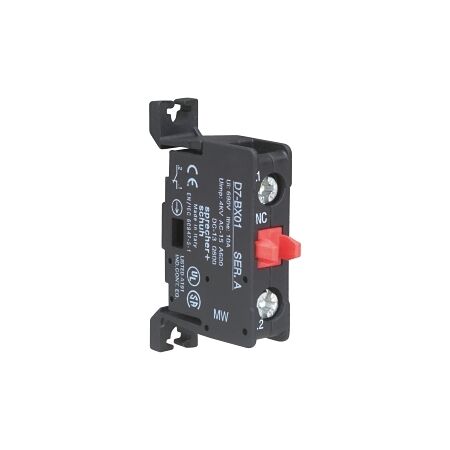

Product Name/Title: Sprecher and Schuh D7 Contact Block Base Mount 1 NC for 22.5mm Pushbutton Operators
Brand: NHP
SKU: D7BX01
Alternatively Known As: D7BX01 Contact Block, Auxiliary Contact Block
Technical Specifications
- Number of contacts: 1 NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (120 V): 6 A
- Rated operation current at AC 15 (240 V): 3 A
- Rated operation current at AC 15 (400 V): 1.8 A
- Rated operation current at DC 13 (125 V): 0.55 A
- Rated operation current at DC 13 (250 V): 0.27 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Mounting method: Base mounting
- Dimensions (H x L x W): 50mm x 50mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Base mounting design for easy installation.
- 1 normally closed contact for reliable operation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and automation systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Base Mount 1 NC for 22.5mm Pushbutton Operators is available now for immediate purchase. Ideal for industrial control applications.
