Contact Block Base Mount 1 NO | 22.5mm Pushbutton | Easy Installation by NHP
Contact block with base mounting design and 1 NO contact—ideal for industrial control panels and machinery. Built for compatibility with 22.5mm pushbutton operators, ensuring easy installation and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

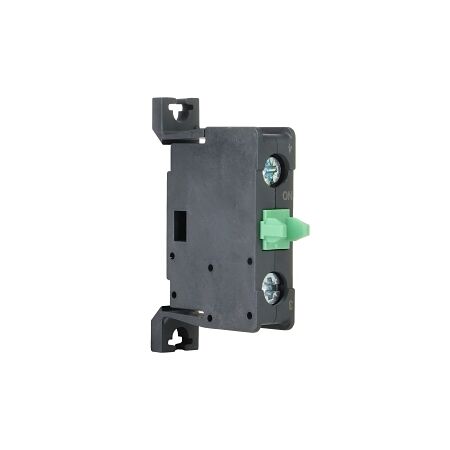

Product Name/Title: Sprecher and Schuh D7 Contact Block Base Mount 1 NO for 22.5mm Pushbutton Operators
Brand: NHP
SKU: D7BX10
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, Base Mount Contact Block
Technical Specifications
- Number of contacts: 1 NO
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (120 V): 6 A
- Rated operation current at AC 15 (240 V): 3 A
- Rated operation current at AC 15 (400 V): 1.8 A
- Rated operation current at DC 13 (125 V): 0.55 A
- Rated operation current at DC 13 (250 V): 0.27 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Mounting method: Base mounting
- Dimensions (H x L x W): 22.5mm x 60mm x 45mm
- Weight: 0.2 kg
Key Features
- Base mounting design for easy installation.
- Compatible with 22.5mm pushbutton operators.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and automation systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for durability and long service life, reducing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Base Mount 1 NO for 22.5mm Pushbutton Operators is available now for immediate purchase. Ideal for industrial control applications.
