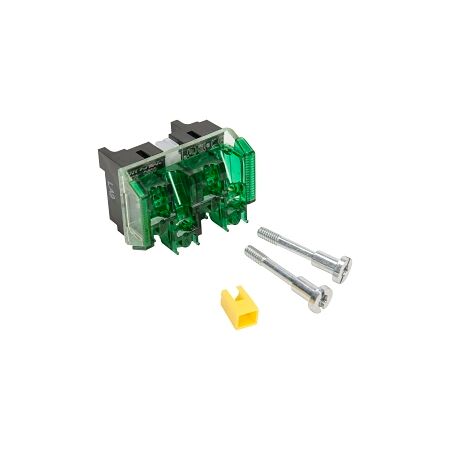

Contact Block FS Terminal Guard | 1 N.O. Contact | 30.5mm | Shallow Design by NHP

BRAND: NHP
SKU: 800TCXD1
$41.70 List price: $55.40
+ −
30 Days Return Delivery Options
Contact block with 1 normally open contact and shallow design—ideal for 30.5mm operator control devices. Built for industrial and commercial applications, ensuring reliable control with durable construction.

Product Name/Title: Allen-Bradley 800T Contact Block FS Terminal Guard Shallow 1 N.O. Contact for 30.5mm PB

Brand: NHP

SKU: 800TCXD1

Alternatively Known As: 800T Contact Block, Auxiliary Contact Block, Pushbutton Contact Block

Technical Specifications
  • Number of Contacts: 1 N.O.
  • Rated Insulation Voltage: 300 V
  • Rated Operation Current at 40°C: 10 A
  • Rated Operation Current at AC 15 120 V: 6 A
  • Rated Operation Current at AC 15 240 V: 3 A
  • Rated Operation Current at AC 15 400 V: 1.8 A
  • Rated Operation Current at DC 13 110 V: 0.63 A
  • Rated Operation Current at DC 13 125 V: 0.55 A
  • Rated Operation Current at DC 13 250 V: 0.27 A
  • Minimum Contact Rating Current: 24 mA
  • Minimum Contact Rating Voltage: 24 V
  • Dimensions (H x L x W): 30mm x 30mm x 30mm
  • Weight: 0.2 kg
Key Features
  • Designed for 30.5mm operator control devices.
  • 1 Normally Open contact for versatile applications.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery, and automation systems
  • Commercial: Equipment requiring reliable control mechanisms
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 800T Contact Block FS Terminal Guard Shallow 1 N.O. Contact is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control.

800TCXD1-AU-Contact-Block-for-30.5mm-Operator-Control-Devices-Datasheet.pdf (800TCXD1-AU-Contact-Block-for-30.5mm-Operator-Control-Devices-Datasheet.pdf, 293 Kb) [Download]
