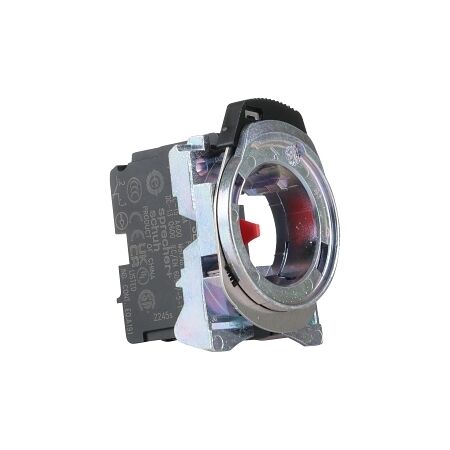

Contact Block Metal Latch Mount | 1N.O. 1N.C. | 22.5mm Adapter by NHP
Contact block with metal latch mount featuring 1 normally open and 1 normally closed contact—ideal for industrial control panels and commercial automation systems. Built for durability and easy integration with 22.5mm operators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Contact Block Metal Latch Mount 1N.O. 1N.C. Contact plus Plate
Brand: NHP
SKU: D7MX01
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, Metal Latch Mount
Technical Specifications
- Rated Insulation Voltage: 690 V
- Rated Operation Current (10 A at 40°C)
- Rated Operation Current at AC 15 (120 V): 6 A
- Rated Operation Current at AC 15 (240 V): 3 A
- Rated Operation Current at AC 15 (400 V): 1.8 A
- Rated Operation Current at DC 13 (125 V): 0.55 A
- Rated Operation Current at DC 13 (250 V): 0.27 A
- Minimum Contact Rating Current: 5 mA
- Minimum Contact Rating Voltage: 17 V
- Dimensions (H x L x W): 50mm x 100mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Contact Block and Adapter for 22.5mm Operators
- 1 Normally Open and 1 Normally Closed contact
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels and machinery
- Commercial: Automation systems and equipment
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Metal Latch Mount is available now for immediate purchase. Ideal for industrial and commercial automation applications.
