Trade Discount 25%

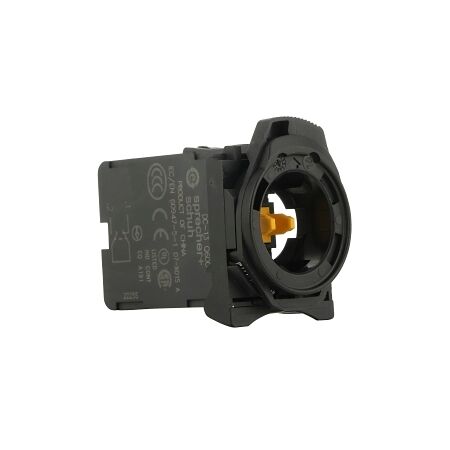

Contact Block Screw 1 N.C. | Self-Monitoring | 22.5mm Plate by NHP
Contact block screw with self-monitoring functionality and 22.5mm plastic plate—ideal for industrial control panels and machinery. Built for enhanced safety, with durable design for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Contact Block Screw 1 N.C. Self Monitoring and Plastic Plate for 22.5mm Pb
Brand: NHP
SKU: D7PX01S
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, N.C. Contact Block
Technical Specifications
- Number of Contacts: 1 N.C.
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 (120 V): 6 A
- Rated Operation Current at AC 15 (240 V): 3 A
- Rated Operation Current at AC 15 (400 V): 1.8 A
- Rated Operation Current at DC 13 (125 V): 0.55 A
- Rated Operation Current at DC 13 (250 V): 0.27 A
- Minimum Contact Rating Current: 5 mA
- Minimum Contact Rating Voltage: 17 V
- Dimensions (H x L x W): 22.5mm x 22.5mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Self-monitoring functionality for enhanced safety.
- Designed for 22.5mm operators.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and automation systems
- Commercial: Equipment requiring reliable contact blocks
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Screw 1 N.C. is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable contact solutions.
