Home/Electrical/Cabling/Cable/Control & Security Cable/Contact Pin & Insulation Set 4P 25 mm² | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof

Trade Discount 19%

$PL 16 \ 106 Contact Pin & Insul Set 4P 25 mm^2$

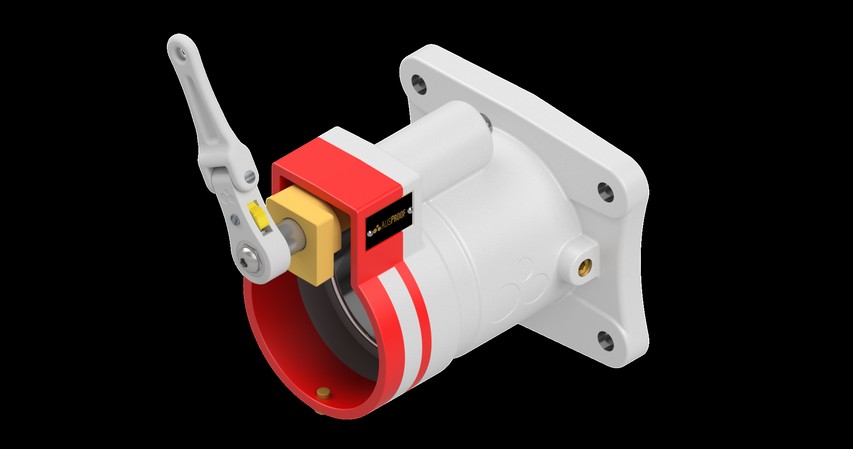

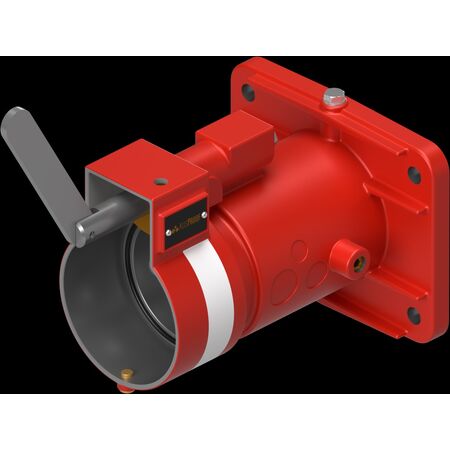

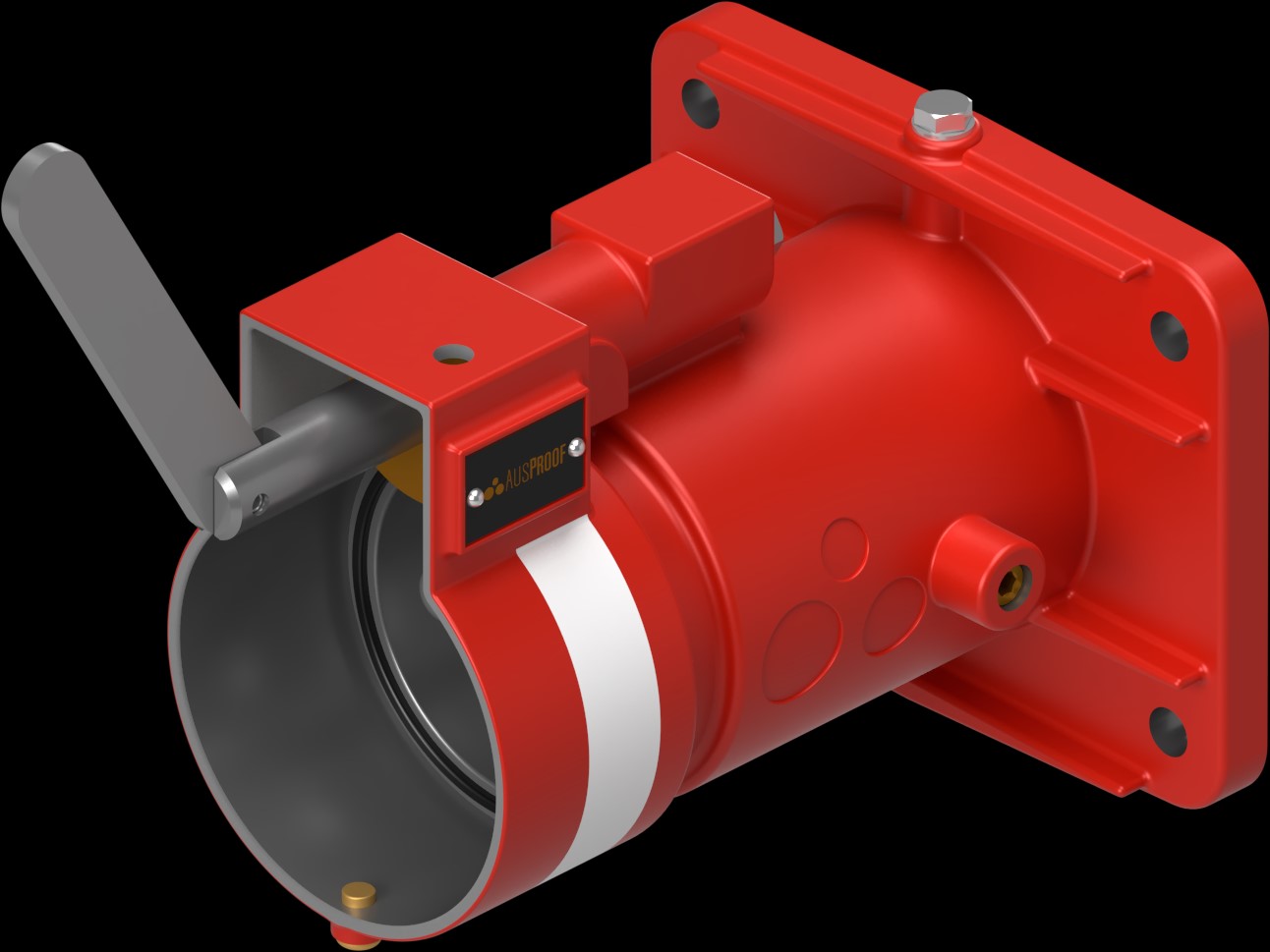

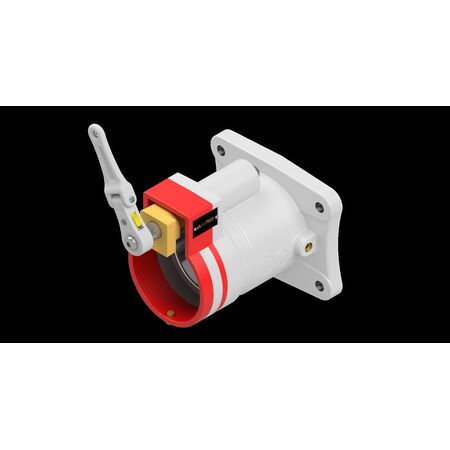

Contact Pin & Insulation Set 4P 25 mm² | 660V to 3300V | IP55 Ingress Protection | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2118

$270.90 List price: $336.40

+ −

30 Days Return Delivery Options

Contact pin and insulation set with a voltage range of 660V to 3300V and IP55 ingress protection—ideal for mining and hazardous environments. Built for safety and reliability, featuring quick release and stainless steel construction for durability.

Description

Product Name/Title: PL 16 \ 106 Contact Pin & Insul Set 4P 25 mm^2

Brand: Ausproof

SKU: RS2118

Alternatively Known As: PL Range Contact Pin Set, Flameproof Contact Pin Set, Ex-rated Contact Pin Assembly, Mining Contact Pin Set

Technical Specifications

Voltage Range: 660V to 3300V
Current Ratings: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 10.7 kg (Receptacle)
Dimensions (H x L x W): 150mm x 200mm x 150mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Flameproof design enhances safety, reducing risk of environmental hazards.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 16 \ 106 Contact Pin & Insul Set 4P 25 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring flameproof electrical connectors.
