Home/Electrical/Industrial/Industrial Inlet Socket/Contact Pin & Insulation Set 4P | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

Trade Discount 19%

$PL 12 \ 106 Contact Pin & Insul Set 4P 16 mm^2$

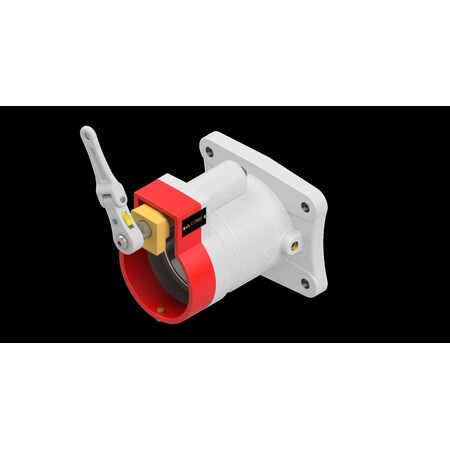

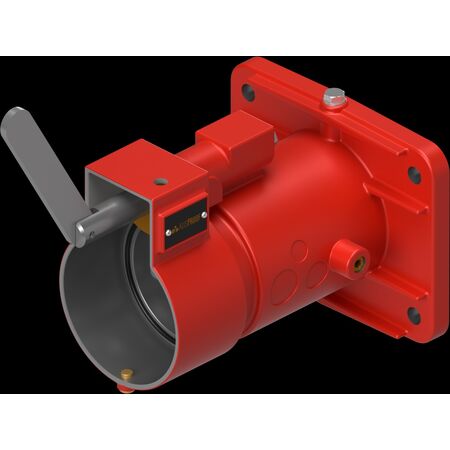

Contact Pin & Insulation Set 4P | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2106

$270.90 List price: $336.40

+ −

30 Days Return Delivery Options

Contact pin and insulation set with a voltage range of 660V to 3300V and IP55 rating—ideal for mining and tunnelling applications. Built for hazardous environments, featuring quick release and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 12 \ 106 Contact Pin & Insul Set 4P 16 mm^2

Brand: Ausproof

SKU: RS2106

Alternatively Known As: Contact Pin Set 4P 16mm², PL Range Contact Pin, Ex-rated Contact Pin Set, Flameproof Contact Pin Set

Technical Specifications

Voltage Range: 660V to 3300V
Current Ratings: 300A and 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliant to: AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 160mm x 160mm x 160mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation should be performed by qualified professionals trained in hazardous area electrical equipment to ensure compliance and safety.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

Complies with AS/NZS 1299 for electrical equipment in hazardous areas

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements.
Easy on-site repair reduces waste and resource consumption.

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 12 \ 106 Contact Pin & Insul Set 4P 16 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
