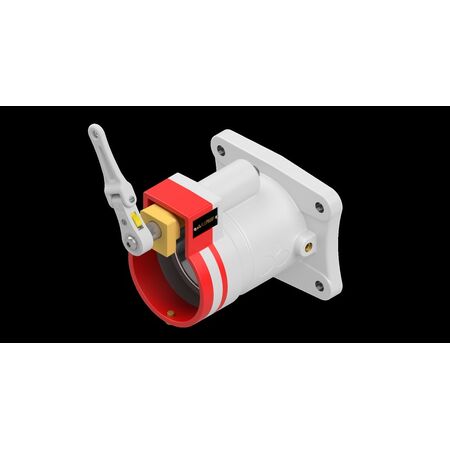

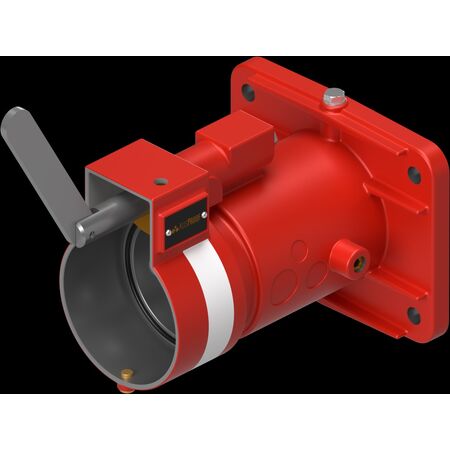

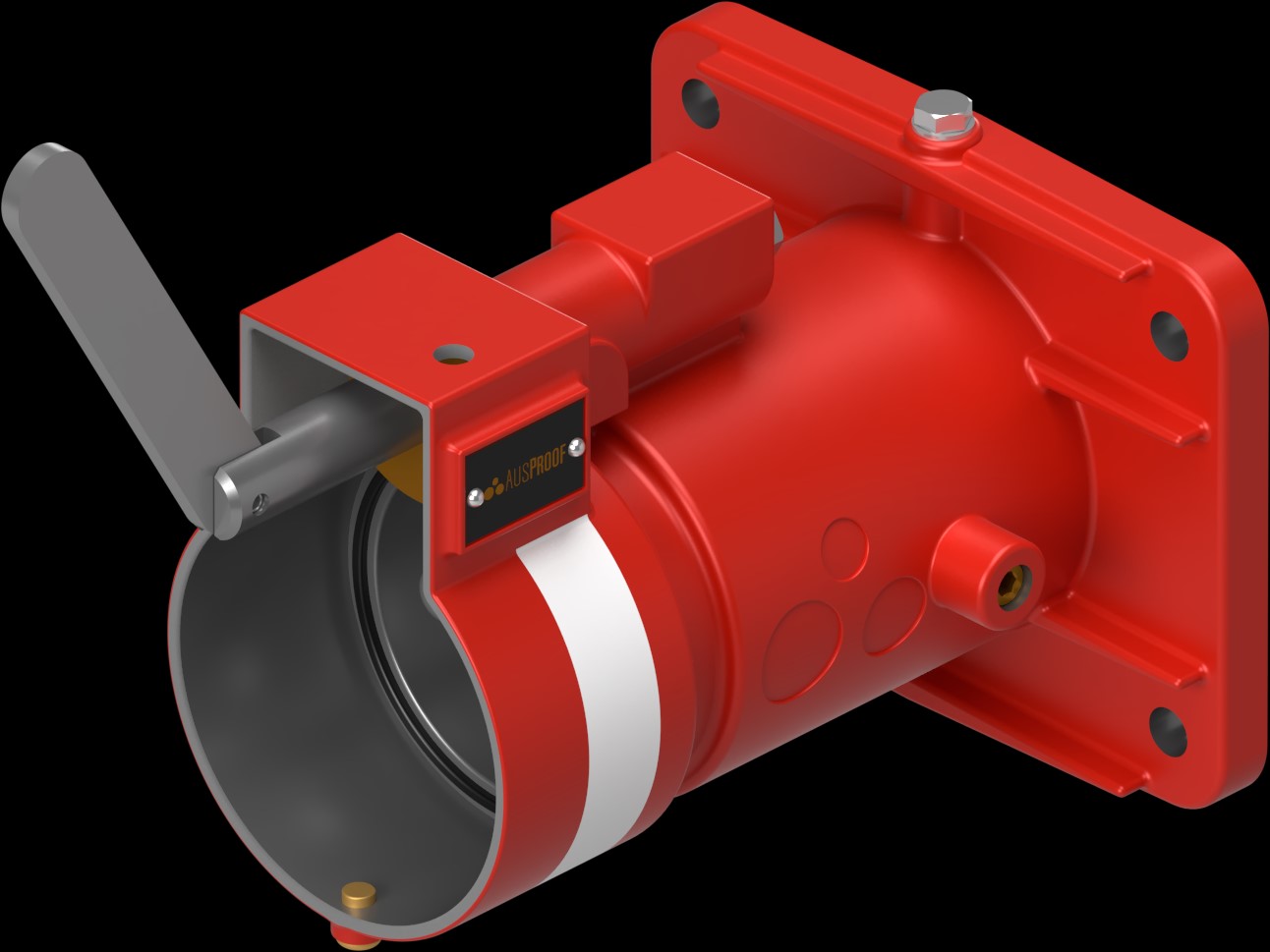

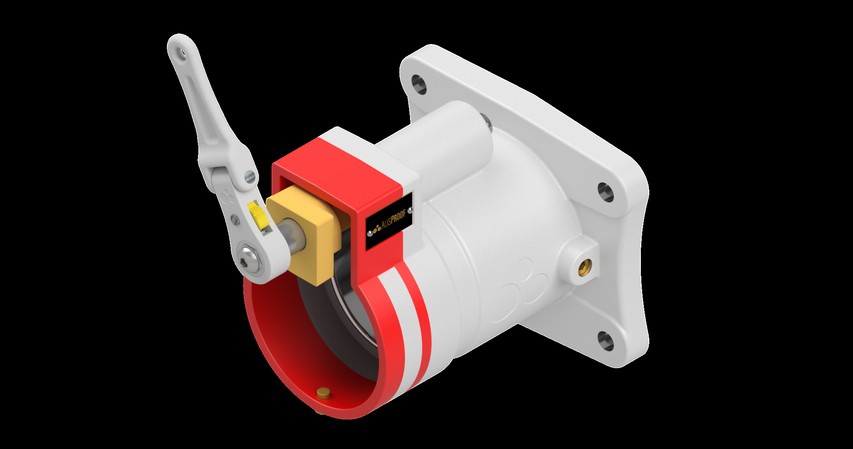

Contact Pin & Insulation Set 4P | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS2124

$270.90 List price: $336.40

+ −

30 Days Return Delivery Options

Contact pin and insulation set with a voltage range of 660V to 3300V and IP55 rating—ideal for mining and hazardous environments. Built for professional installation, featuring quick release and durable stainless steel construction for enhanced safety.

Description

Product Name/Title: PL 16 \ 106 Contact Pin & Insul Set 4P 150 mm^2

Brand: Ausproof

SKU: RS2124

Alternatively Known As: PL Range Contact Pin Set, Flameproof Contact Pin Set, Ex-rated Contact Pin 4P, Mining Contact Pin Set

Technical Specifications

Voltage Range: 660V to 3300V
Current Ratings: 300A and 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Compliant to AS/NZS 1299, IEC 60079-0, IEC 60079-1
Dimensions (H x L x W): 150mm x 150mm x 150mm
Weight: 10.7 kg

Key Features

Quick Release
Single piece contacts to prevent hot joints
Easy termination
Easy flameproof repair
Full solid earth connectivity throughout product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone Protection Cover
Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.

Applications

Mining
Tunnelling
Commercial applications
Group 1 hazardous environments

Standards & Compliance

AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces waste by extending product life
Flameproof design enhances safety, reducing risk of environmental hazards

Warranty Information

Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.

Available Now

The Ausproof PL 16 \ 106 Contact Pin & Insul Set 4P 150 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
