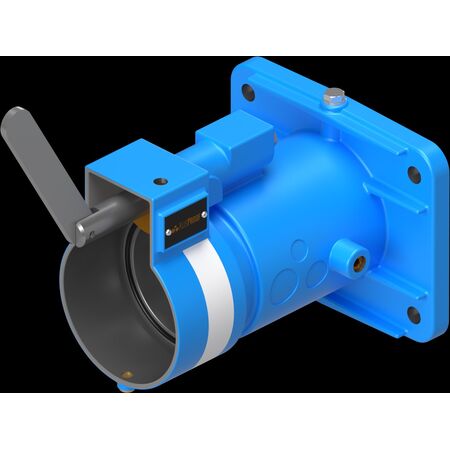

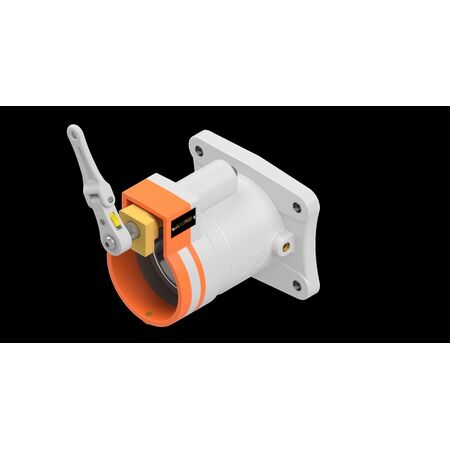

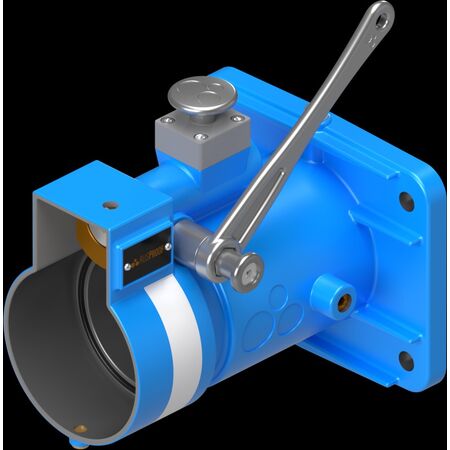

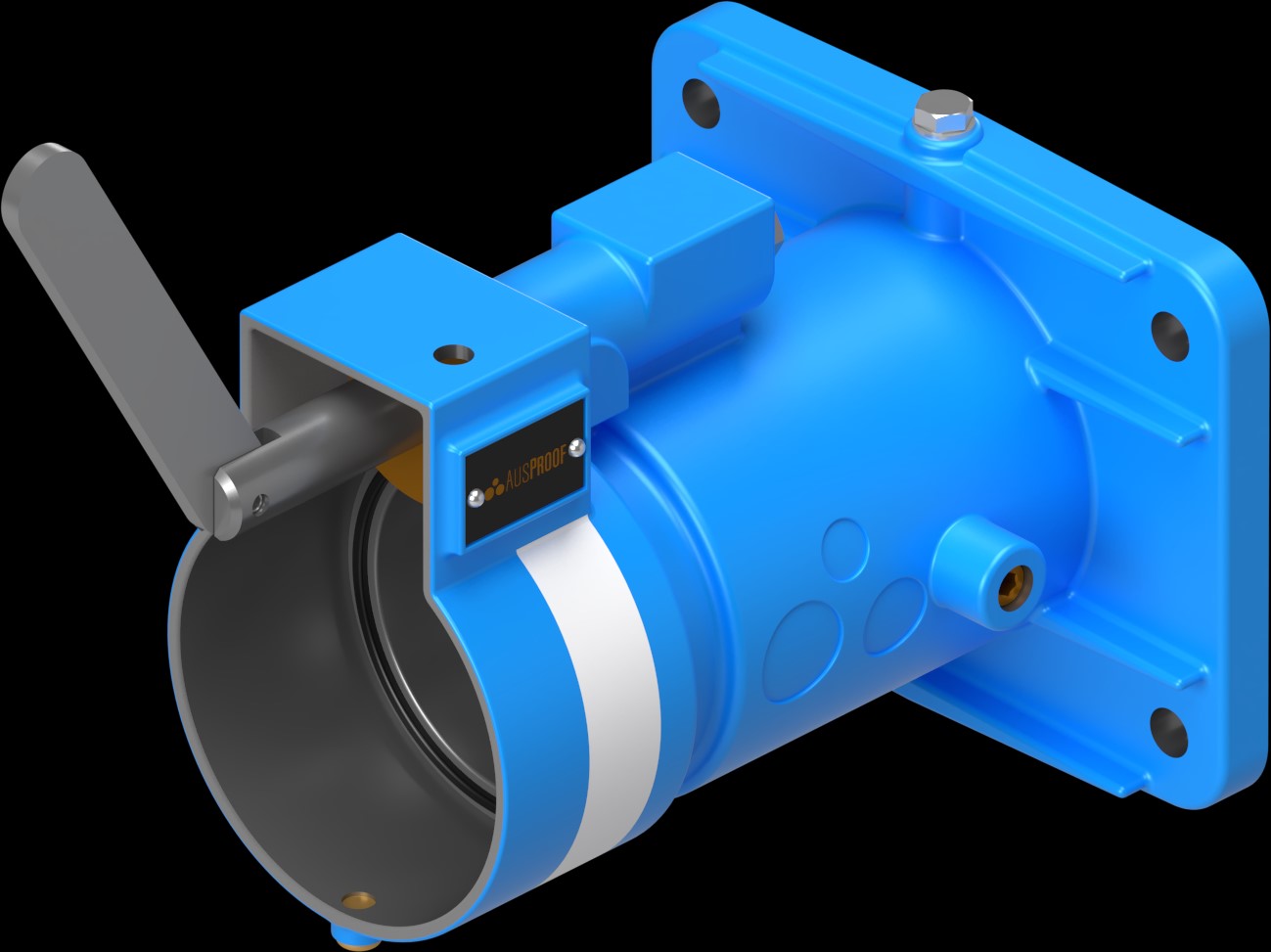

Contact Pin & Insulation Set 4P | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
Contact pin and insulation set with a voltage range of 660V to 3300V and IP55 rating—ideal for mining and hazardous environments. Built for commercial applications, featuring quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 19 \ 78 Contact Pin & Insul Set 4P 16 mm^2
Brand: Ausproof
SKU: RS1989
Alternatively Known As: Contact Pin Set 4P 16mm², PL Range Contact Pin, Ex-rated Contact Pin Set, Flameproof Contact Pin Set
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 160mm x 160mm x 160mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area equipment to ensure compliance with safety standards and proper flameproof assembly.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 for electrical equipment in hazardous areas
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site repairs.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 19 \ 78 Contact Pin & Insul Set 4P 16 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
