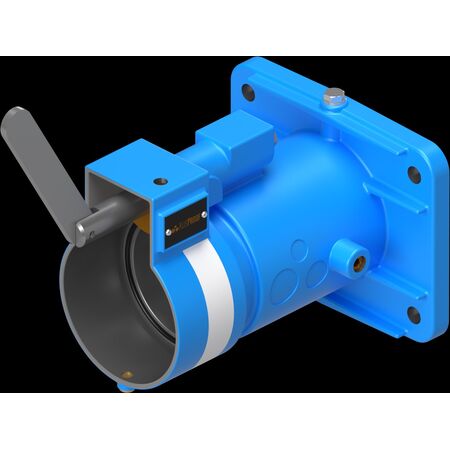

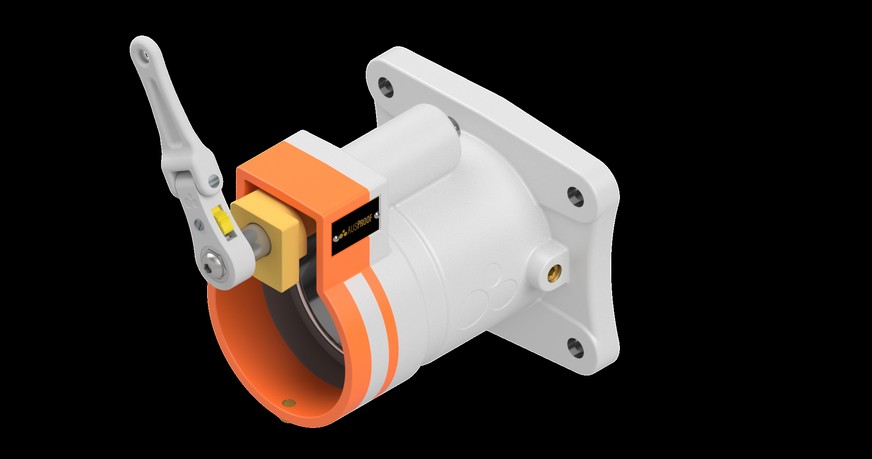

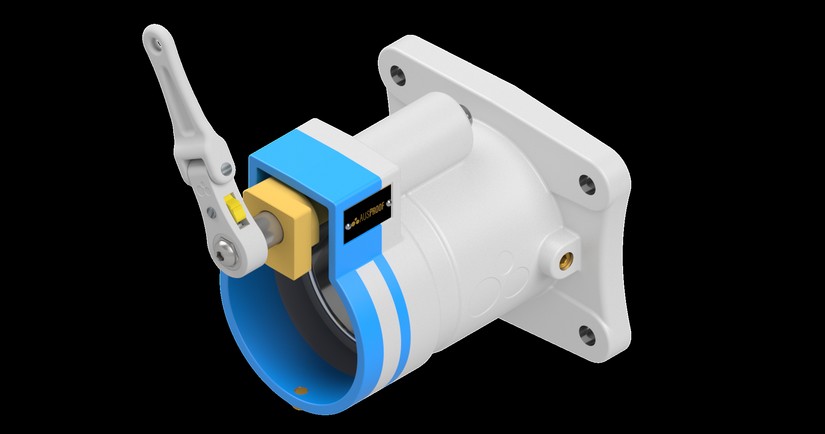

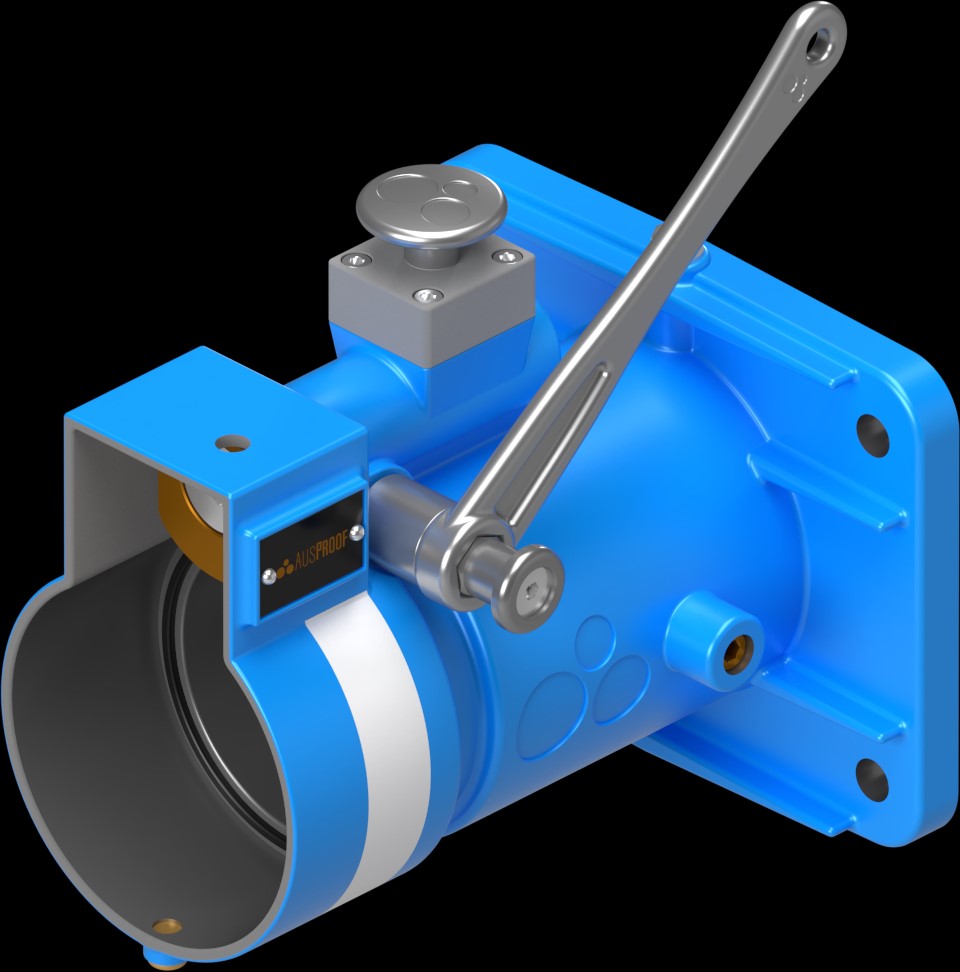

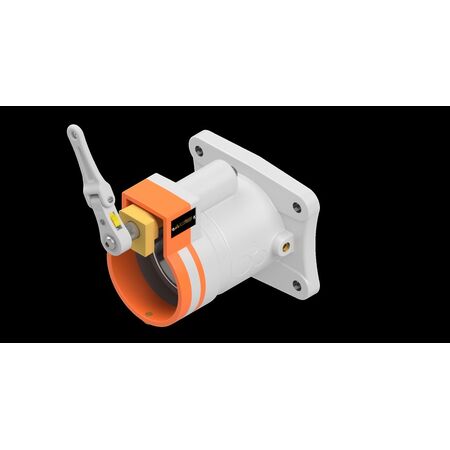

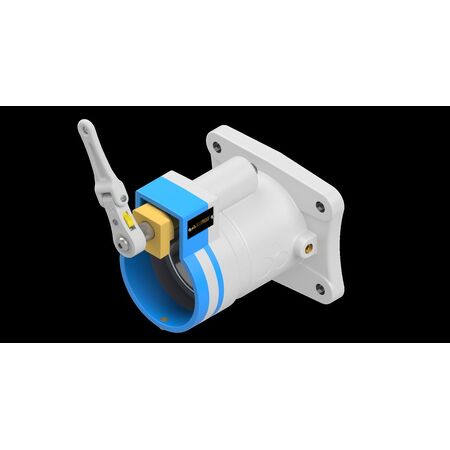

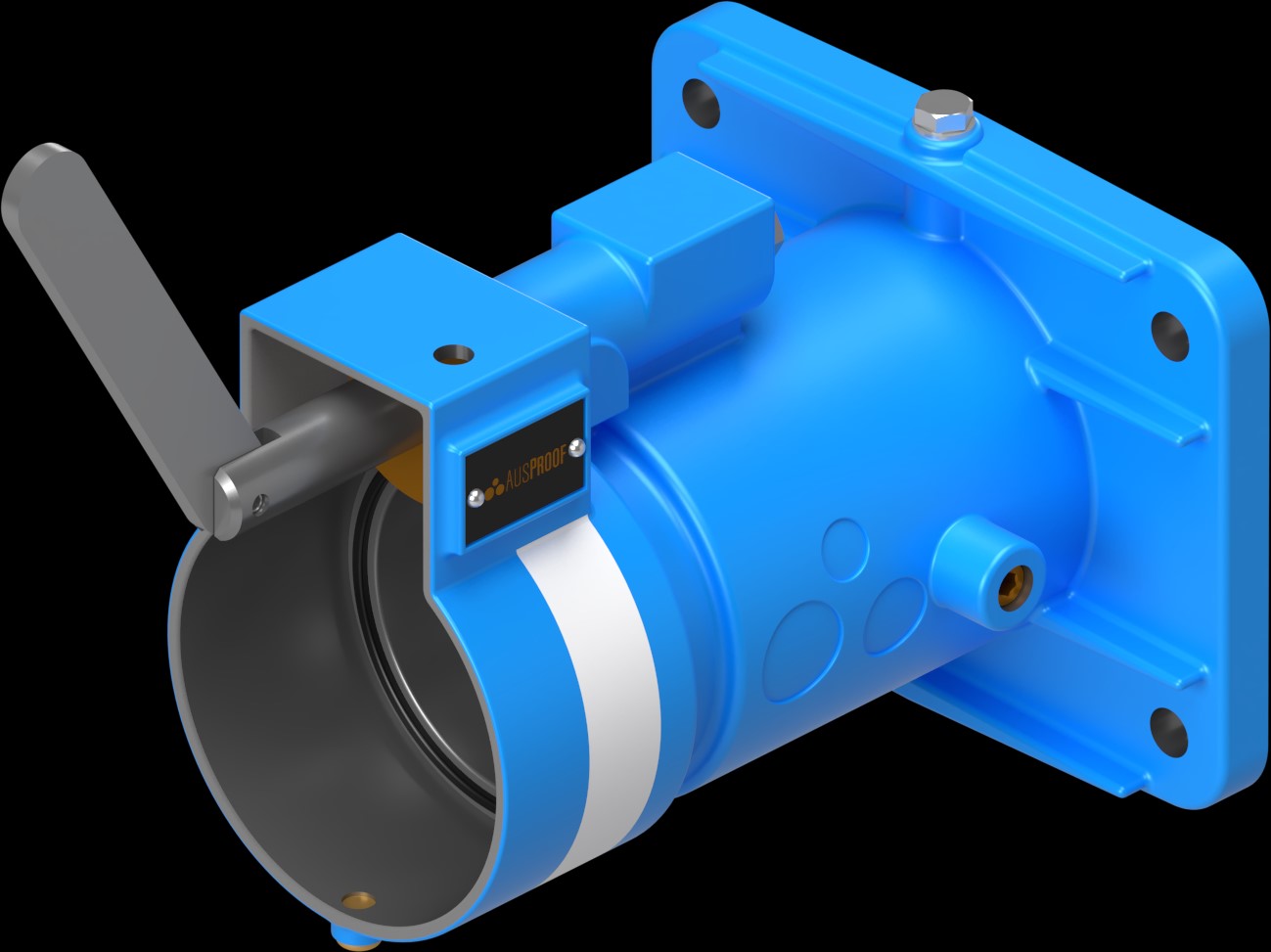

Contact Pin Set 4P 35mm² | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
Contact pin set with 4 poles and 35mm² capacity, designed for voltages from 660V to 3300V and rated IP55 for protection. Ideal for mining and tunnelling applications, this durable stainless steel set features quick release and easy termination for efficient installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 19 \ 78 Contact Pin & Insul Set 4P 35 mm^2
Brand: Ausproof
SKU: RS1991
Alternatively Known As: Contact Pin Set 4P 35mm², Flameproof Contact Pin Set, Ex Certified Contact Pins, PL Range Contact Pins
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 150mm x 200mm x 150mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified personnel trained in hazardous area electrical equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 - Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairable design minimizes waste by allowing on-site repairs.
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 19 \ 78 Contact Pin & Insul Set 4P 35 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
