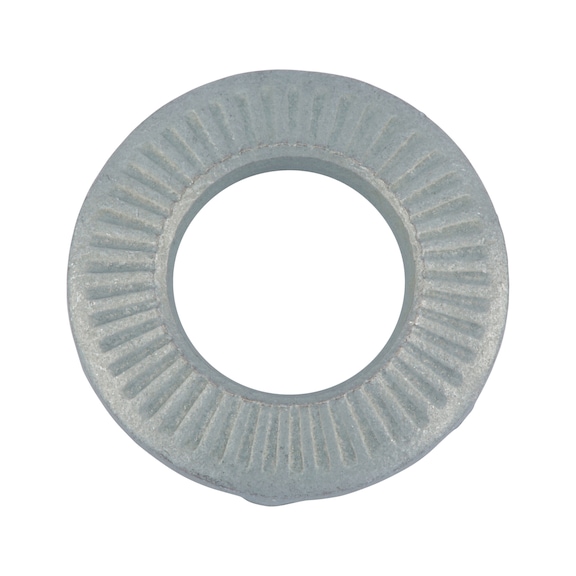

Contact Washer DISC MZP D102 | M10 Compatibility | Serrated Design | Zinc Plated | @Pack of 25 | by Wurth
Contact Washer DISC MZP D102 is designed for M10 compatibility, featuring a serrated design that prevents rotation during installation. Ideal for electrical grounding and mechanical fastening applications, this washer ensures optimum grounding and secure contact. Made from durable zinc-plated steel, it promotes recyclability and extends product life, making it a reliable choice for industrial and automotive assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contact Washer DISC MZP D102 | M10 Compatibility | Serrated Design | Zinc Plated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4130010
Alternatively Known As: Contact Toothing Washer, Serrated Grounding Washer, M10 Contact Washer

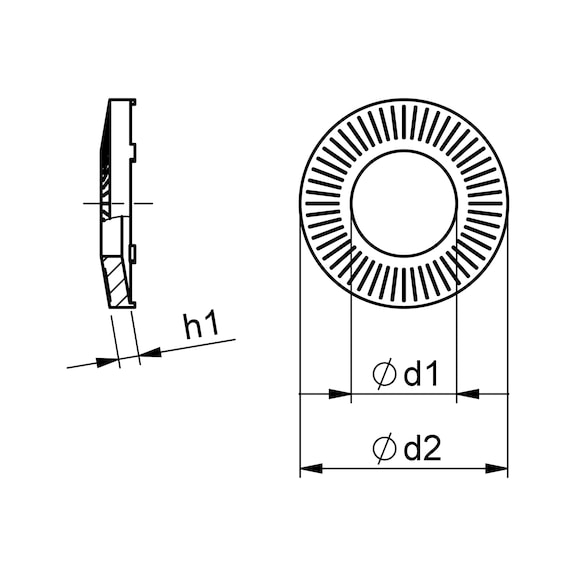

Technical Specifications
- Suitable for screw thread: M10
- Internal diameter (d1): 10.2 mm
- Outer diameter (d2): 20 mm
- Thickness (h1): 1.6 mm
- Material: Steel
- Min./max. Vickers hardness, HV: 420-520 HV
- Surface: Zinc plated
- Other standard: WN 413
- Design: Contact toothing
- Dimensions (H x L x W): 1.6mm x 20mm x 20mm
- Weight: 0.02 kg
Key Features
- Mechanically galvanised steel construction
- Serrated design prevents rotation during unscrewing and tightening
- Optimum grounding assured by serration
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper grounding and fastening.
Applications
- Electrical grounding and bonding applications
- Mechanical fastening requiring secure contact
- Industrial and automotive assembly
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable zinc plated surface extends product life reducing waste
- Mechanically galvanised steel promotes recyclability
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Contact Washer DISC CNTCT SER MZP D102 25 PCS is available for immediate purchase, ideal for electrical and mechanical fastening applications.
