Trade Discount 33%

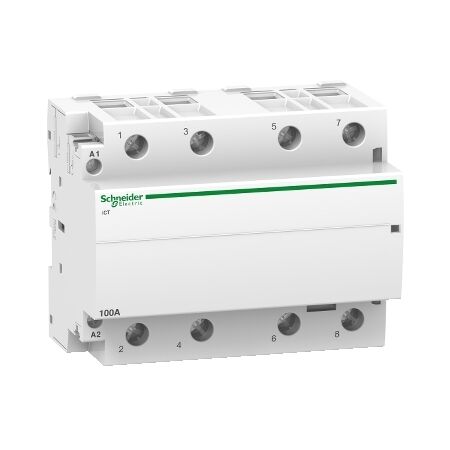

Contactor 100A 4NO | 220-240V 50Hz | Remote Control | IP20 by Clipsal
Contactor with 100A 4NO configuration and 220-240V 50Hz control—ideal for small commercial and residential heating applications. Built for reliability, with remote control capability and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, Contactor, ICT 100A 4NO 220...240V 50Hz
Brand: Clipsal
SKU: A9C20884
Alternatively Known As: Acti9 Contactor, Clipsal Contactor, 100A Contactor
Technical Specifications
- Rated operational voltage: 400 V AC 50 Hz
- Control signal type: maintained
- Electrical durability: 30000 cycles
- Control circuit voltage: 220-240 V AC 50 Hz
- Rated insulation voltage: 500 V AC 50 Hz
- Rated impulse withstand voltage: 4 kV
- Switching frequency: 100 switching operations/day
- Hold-in power consumption: 13 VA
- Inrush power: 106 VA
- Noise level: 30 dB
- Pollution degree: 2
- Operating altitude: 2000 m
- Dimensions (H x L x W): 85mm x 60mm x 108mm
- Weight: 0.621 kg
Key Features
- Rated operational current: 100 A AC-7A
- Remote control capability
- IP20 protection rating
- Compatible with iACTpiACTsiATEtiACTc
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Small commercial and residential heating applications
Standards & Compliance
- Complies with EN 61095 and IEC 61095 standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
18 months warranty.
Available Now
The Clipsal Acti9 Contactor 100A 4NO 220-240V 50Hz is available now for immediate purchase. Ideal for small commercial and residential heating applications.
