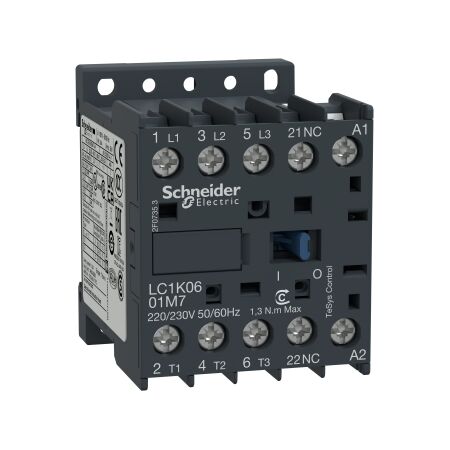

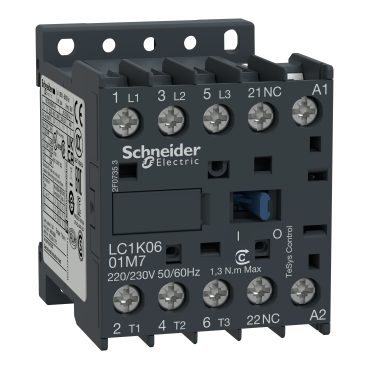

Contactor 2.2KW 240V AC | 3-Pole Design | High Electrical Durability | Compact TeSys K Series | @Pack of 1 | by Clipsal
The Contactor 2.2KW 240V AC is designed for reliable motor control and power switching in industrial and commercial applications. Featuring a 3-pole design with one normally closed auxiliary contact, this compact TeSys K series contactor ensures high electrical durability and secure wiring with screw clamp terminals. Ideal for HVAC systems, pumps, and lighting circuits, it offers energy-efficient operation and long life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor 2.2KW 240V AC | 3-Pole Design | High Electrical Durability | Compact TeSys K Series | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLC1K0601U7
Alternatively Known As: 2.2kW Contactor, 240V AC Contactor, TeSys K Contactor, LC1K0601U7, Schneider Contactor 2.2kW
Technical Specifications
- Rated operational power: 2.2kW (AC-3, 400V)
- Rated operational current: 6A (AC-3, 440V)
- Coil voltage: 230...240V AC 50/60Hz
- Number of poles: 3P
- Auxiliary contacts: 1 NC
- Utilization category: AC-3
- Mounting: DIN rail or screw
- Terminal type: Screw clamp
- Electrical durability: 1,000,000 cycles
- Mechanical durability: 30,000,000 cycles
- Standards: IEC 60947-4-1
- Dimensions (H x L x W): 58mm x 60mm x 45mm
- Weight: 0.25 kg
Key Features
- Rated operational power: 2.2kW at 400V (AC-3)
- 3-pole contactor with 1 normally closed (NC) auxiliary contact
- AC coil voltage: 230...240V 50/60Hz
- Compact TeSys K series design for space-saving installations
- High electrical durability and reliability
- Screw clamp terminals for secure wiring
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor control for industrial machinery
- Lighting circuits
- HVAC systems
- Pumps and compressors
- General power switching in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption in control circuits.
- Long operational life minimizes replacement waste.
- RoHS compliant, reducing hazardous substances.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys K Contactor 2.2KW 240V AC (SCHLC1K0601U7) is available for immediate purchase. Ideal for industrial and commercial motor control and power switching applications.
