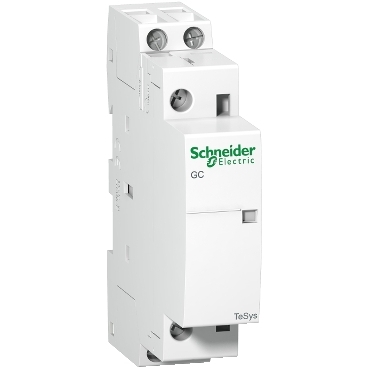

Contactor 2 Pole 25A | 230V AC Coil Voltage | DIN Rail Mount | by Clipsal
The Contactor is a reliable 2 pole switch rated for 25A, perfect for lighting control and HVAC systems in both residential and commercial settings. With a 230V AC coil voltage and a compact DIN rail mount design, it ensures silent operation and long electrical life, making it ideal for automation panels and distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor 2 Pole 25A | 230V AC Coil Voltage | DIN Rail Mount | by Clipsal
Brand: Clipsal
SKU: SCHGC2520M5
Alternatively Known As: Clipsal contactor, 25A contactor, 2 pole contactor, SCHGC2520M5, Clipsal relay switch, DIN rail contactor
Technical Specifications
- Number of Poles: 2
- Rated Operational Current: 25A
- Coil Voltage: 230V AC 50/60Hz
- Mounting: DIN rail
- Electrical Endurance: 100,000 cycles
- Mechanical Endurance: 1,000,000 cycles
- Operating Temperature: -20°C to +60°C
- Standards: IEC/EN 61095
- Dimensions (H x L x W): 85mm x 60mm x 36mm
- Weight: 0.35 kg
Key Features
- 2 pole contactor for reliable switching
- 25A current rating suitable for various loads
- 230V AC coil voltage
- Compact DIN rail mount design
- Silent operation for residential and commercial use
- Long electrical and mechanical life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Lighting control in commercial and residential buildings
- Switching of heating, ventilation, and air conditioning (HVAC) systems
- Control of pumps and motors
- Automation panels and distribution boards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation and control of electrical loads
- Reduces unnecessary power consumption by automating switching
- Supports integration with energy management systems
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHGC2520M5 2 Pole 25A Contactor is available for immediate purchase. Ideal for lighting, HVAC, and automation control in both residential and commercial settings.
