Contactor 22kW 3 Pole | 24VDC Coil | IP2X Protection | DIN-Rail by NHP
Contactor with 22kW power and 3 pole design—ideal for motor control and automation systems. Built for industrial and commercial use, with 24VDC coil and IP2X protection for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

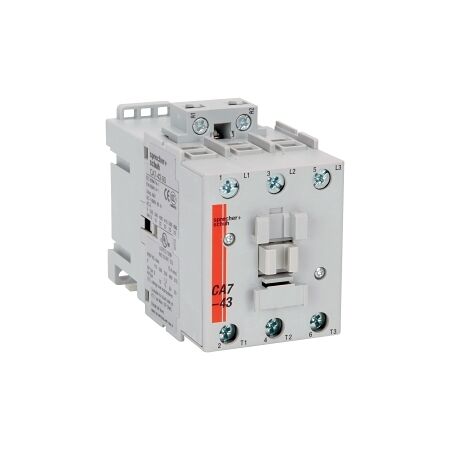

Product Name/Title: S+S CA7 Contactor 22kW 3Pole 24VDC Coil
Brand: NHP
SKU: CA743E0024VDC
Alternatively Known As: Power Contactor, AC Switching Contactor
Technical Specifications
- Rated operation current at AC 3, 400 V: 43 A
- Rated operation power at AC 3, 400 V: 22 kW
- Rated operation current at AC 1, 400 V: 85 A
- Max rated operation voltage: 690 V
- Control supply voltage: 24 V DC
- Power consumption DC coil pickup: 16 W
- Power consumption DC coil hold-in: 2.5 W
- Rated operation current at AC 3, 690 V: 25 A
- Rated operation power at AC 3, 690 V: 22 kW
- Rated operation power at AC 4, 400 V: 6.3 kW
- Rated operation current at AC 4, 400 V: 14 A
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 81mm x 107mm x 54mm
- Weight: 0.57 kg
Key Features
- 22 kW rated operation power
- 3 pole design with 24VDC coil
- IP2X protection degree
- Screw connection for main circuit
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and automation systems
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
Standard warranty applies.
Available Now
The S+S CA7 Contactor 22kW 3Pole 24VDC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
