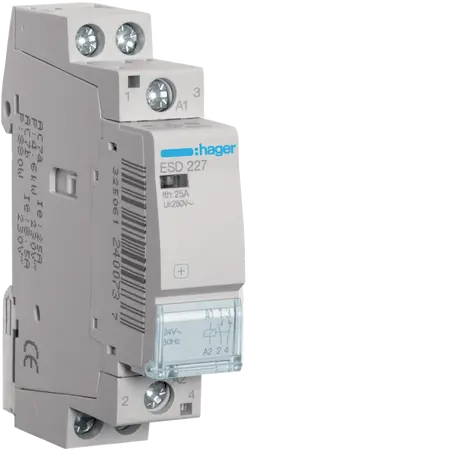

Contactor 25A 1NO+1NC | 24V 50Hz | Compact Design by Hager

BRAND: :hager
SKU: ESD227
$94.50 List price: $120.80
+ −
30 Days Return Delivery Options
Contactor with 25A rated current and 1NO+1NC contacts—ideal for residential and commercial electrical circuits. Built for durability with 100,000 mechanical operations and energy-efficient performance.

Product Name/Title: Contactor 25A, 1NO+1NC, 24V~50Hz

Brand: Hager

SKU: ESD227

Alternatively Known As: Electric Contactor, Control Device

Technical Specifications
  • Type of contacts: 1NC+1NO
  • Number of contacts: 2
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1 - 10 mm²
  • Rated current: 25 A
  • Number of modules: 1
  • Frequency: 50 - 50 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 250 V
  • Command voltage AC: 24 - 24 V
  • Storage/transport temperature: -40 - 80 °C
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 2.50 W
  • Inrush power absorbed: 10.70 VA
  • Number of NO contacts: 1
  • Number of NC contacts: 1
  • Nominal tightening torque: 1.20 - 1.20 Nm
  • Dimensions (H x L x W): 83mm x 60mm x 17.85mm
  • Weight: 0.5 kg
Key Features
  • Compact design with 1NO+1NC contacts.
  • Rated current of 25A ensuring high performance.
  • Durable with ability to withstand 100,000 mechanical operations.
Professional Installation Requirements
  • Installation by a qualified electrician recommended for optimal performance and safety.
Applications
  • Residential: Suitable for use in home electrical circuits.
  • Commercial: Designed for industrial and commercial applications requiring contactor solutions.
Standards & Compliance
  • Complies with AS/NZS standards for electrical safety and performance.
Environmental Benefits
  • Designed for energy-efficient operation.
  • Minimizes power loss with low total power dissipation of 2.50W.
Warranty Information

Warrantied for one year against material and manufacturing defects.

Available Now

The Hager Contactor 25A is available now for immediate purchase, ideal for use in control circuits requiring reliable switching.

ESD227 (ESD227, 134 Kb) [Download]

reach_declaration_ESD2276.pdf (reach_declaration_ESD2276.pdf, 103 Kb) [Download]

rohs_declaration_ESD2276.pdf (rohs_declaration_ESD2276.pdf, 104 Kb) [Download]

(DECLARATION_21_3000_09_21.pdf, 383 Kb) [Download]

(DECLARATION_21_1376_05_21.pdf, 221 Kb) [Download]
