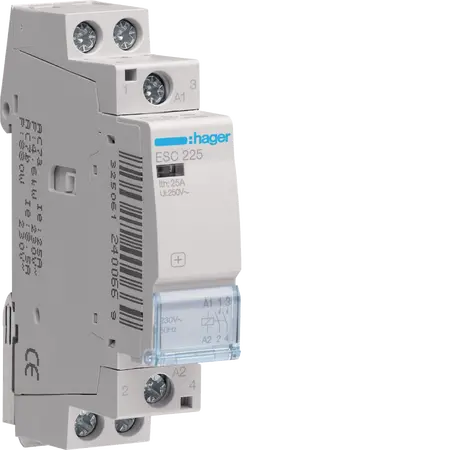

Contactor 25A 2NO | 230V AC | Single Module Width by Hager

BRAND: :hager

SKU: ESC225

$54.80 List price: $70.00

+ −

30 Days Return Delivery Options

Contactor with 25A rated current and 2 normally open contacts—ideal for residential, commercial, and industrial applications. Built for reliable performance, with compact single module width and 230V AC compatibility.

Description
Attachments

Product Name/Title: Contactor 25A, 2NO, 230V~50Hz

Brand: Hager

SKU: ESC225

Alternatively Known As: ESC225 Contactor

Technical Specifications

Type of contacts: 2NO
Number of contacts: 2
Cross-section flexible conductor: 1 - 6 mm²
Cross-section rigid conductor: 1 - 10 mm²
Rated current: 25 A
Number of modules: 1
Frequency: 50 - 50 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 250 V
Command voltage AC: 230 - 230 V
Command voltage DC: 0 - 0 V
Operating temperature: -10 - 50 °C
Storage/transport temperature: -40 - 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 4 W
Inrush power absorbed: 10.70 VA
Height: 83 mm
Width: 17.85 mm
Depth: 60 mm
Number of NO contacts: 2
Number of NC contacts: 0
With switch for manual switch: No
Nominal tightening torque: 1.20 - 1.20 Nm
Hum-free: No
Dimensions (H x L x W): 83mm x Not Specifiedmm x 17.85mm
Weight: Not Specified kg

Key Features

25A rated current for reliable performance
2 Normally Open contacts
Compact single module width
Rated for 230V AC and 50-50Hz frequency

Professional Installation Requirements

Professional installation by a qualified electrician is recommended.

Applications

Residential: Homes, apartments
Commercial: Offices, retail spaces
Industrial: Factories, workshops

Standards & Compliance

Complies with relevant Australian standards for electrical equipment

Environmental Benefits

High efficiency to reduce energy loss

Warranty Information

Contact manufacturer for warranty details.

Available Now

Available for immediate purchase. Ideal for applications in both residential and commercial sectors.

ESC225 (ESC225, 138 Kb) [Download]

reach_declaration_ESC2256.pdf (reach_declaration_ESC2256.pdf, 103 Kb) [Download]

rohs_declaration_ESC2256.pdf (rohs_declaration_ESC2256.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3000_09_21.pdf, 383 Kb) [Download]

(DECLARATION_21_1376_05_21.pdf, 221 Kb) [Download]
