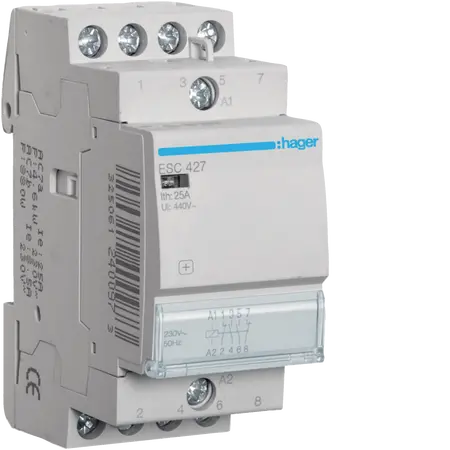

Contactor 25A 2NO+2NC | 230V AC | Compact Design by Hager

BRAND: :hager

SKU: ESC427

$99.20 List price: $126.90

+ −

30 Days Return Delivery Options

Contactor with 25A rated current and 2NO+2NC contacts—ideal for residential and commercial electric circuits. Built for reliable control, with 230V AC command voltage and compact design for easy installation.

Description
Attachments

Product Name/Title: Contactor 25A, 2NO+2NC, 230V~50Hz

Brand: Hager

SKU: ESC427

Alternatively Known As: ESC427 Contactor

Technical Specifications

Connection Type: 2NC+2NO
Number of Contacts: 4
Cross-section flexible conductor: 1 - 6 mm²
Cross-section rigid conductor: 1 - 10 mm²
Rated current: 25 A
Number of modules: 2
Frequency: 50 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 250 V
Command voltage AC: 230 V
Operating temperature: -10 to 50 °C
Storage/transport temperature: -40 to 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 4.50 W
Inrush power absorbed: 21 VA
Height: 83 mm
Width: 35.75 mm
Depth: 60 mm
Nominal tightening torque: 1.20 Nm
Dimensions (H x L x W): 83mm x 60mm x 35.75mm
Weight: Not specified kg

Key Features

Rated current of 25A
2 Normally Open and 2 Normally Closed contacts
Suitable for 230V AC command voltage

Professional Installation Requirements

Installation should be performed by a certified electrician to ensure safety and compliance with installation standards.

Applications

Residential and commercial electric circuits
General-purpose control circuits
Switching AC circuits

Standards & Compliance

Complies with relevant Australian electrical safety standards.

Environmental Benefits

Durable design reduces need for frequent replacements

Warranty Information

5 years manufacturer warranty against defects.

Available Now

The Hager Contactor 25A, 2NO+2NC, 230V~50Hz is available for immediate purchase. Ideal for various applications in controlling electric circuits.

ESC427 (ESC427, 163 Kb) [Download]

reach_declaration_ESC4276.pdf (reach_declaration_ESC4276.pdf, 103 Kb) [Download]

rohs_declaration_ESC4276.pdf (rohs_declaration_ESC4276.pdf, 104 Kb) [Download]

(DECLARATION_21_3001_09_21.pdf, 386 Kb) [Download]
