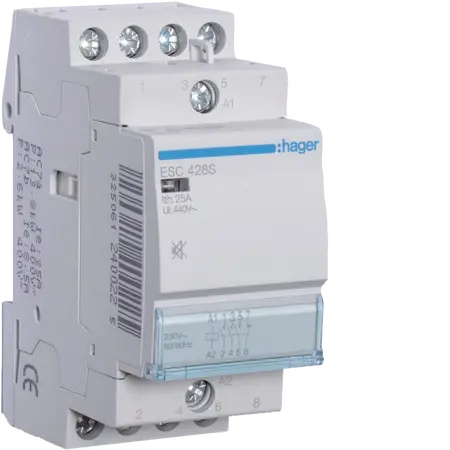

Humfree Contactor 25A, 3NO+1NC, 230V~50/60Hz

Contactor 25A 3NO+1NC | 230V 50/60Hz | Compact Design by Hager

BRAND: :hager

SKU: ESC428S

$117.20 List price: $149.80

+ −

30 Days Return Delivery Options

Contactor with 3NO+1NC configuration and 25A rating—ideal for residential, commercial, and light industrial circuit management. Built for versatile circuit control, with compact design for standard installations.

Description
Attachments

Product Name/Title: Humfree Contactor 25A, 3NO+1NC, 230V~50/60Hz

Brand: Hager

SKU: ESC428S

Alternatively Known As: ESC428S Contactor

Technical Specifications

Type of contacts: 3NO+1NC
Number of contacts: 4
Cross-section flexible conductor: 1-6 mm²
Cross-section rigid conductor: 1-10 mm²
Rated current: 25 A
Number of modules: 2
Frequency: 50-60 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 440 V
Command voltage AC: 230-230 V
Command voltage DC: 0-0 V
Operating temperature: -10 - 50 °C
Storage/transport temperature: -40 - 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 7.50 W
Inrush power absorbed: 3.20 VA
Nominal tightening torque: 1.20 - 1.20 Nm
Number of NO contacts: 3
Number of NC contacts: 1
With switch for manual switch: No
Dimensions (H x L x W): 83mm x unknownmm x 35.75mm
Weight: unknown kg

Key Features

3NO+1NC contact configuration for versatile circuit management.
Compact design fitting within standard installations.
Rated for 25A electrical applications with a rated impulse withstand voltage Uimp of 4000V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended.

Applications

Residential: Home electrical circuit control
Commercial: Office building circuit management
Industrial: Light duty electrical equipment management

Standards & Compliance

Compliance details not specified.

Environmental Benefits

Energy efficient operation reducing operational costs.

Warranty Information

Warranty details not provided.

Available Now

Available for immediate purchase and ideal for residential, commercial, and light industrial applications.

ESC428S (ESC428S, 158 Kb) [Download]

reach_declaration_ESC428S6.pdf (reach_declaration_ESC428S6.pdf, 103 Kb) [Download]

rohs_declaration_ESC428S6.pdf (rohs_declaration_ESC428S6.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3001_09_21.pdf, 386 Kb) [Download]
