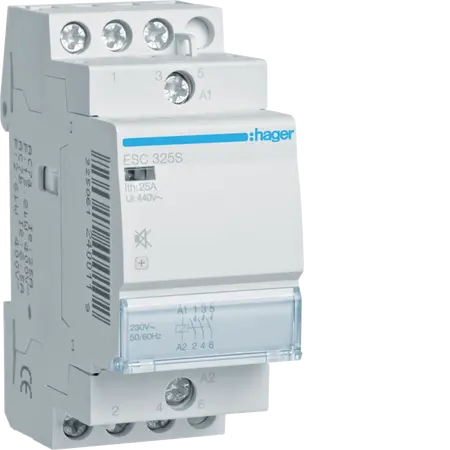

Contactor 25A 3NO | 230V 50/60Hz | Compact Design by Hager

BRAND: :hager
SKU: ESC325S
$98.50 List price: $126.00
+ −
30 Days Return Delivery Options
Efficient 25A contactor with 3NO contacts and 230V 50/60Hz operation—ideal for residential, commercial, and industrial power management. Built for durability with high mechanical and electric cycles, supporting flexible and rigid conductor connections.

Product Name/Title: Humfree Contactor 25A, 3NO, 230V~50/60Hz

Brand: Hager

SKU: ESC325S

Alternatively Known As: Humfree ESC325S Contactor

Technical Specifications
  • Connection: Type of contacts 3NO
  • Number of contacts: 3
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1 - 10 mm²
  • Rated current: 25 A
  • Number of modules: 2
  • Frequency: 50 - 60 Hz
  • Rated impulse withstand voltage Uimp: 4000 V
  • Rated insulation voltage Ui: 440 V
  • Command voltage AC: 230 - 230 V
  • Command voltage DC: 0 - 0 V
  • Operating temperature: -10 - 50 °C
  • Storage/transport temperature: -40 - 80 °C
  • Number of mechanical operations: 100000
  • Electric endurance in number of cycles: 30000
  • Total power loss under IN: 7,50 W
  • Inrush power absorbed: 3,20 VA
  • Number of NO contacts: 3
  • Number of NC contacts: 0
  • Nominal tightening torque: 1,20 - 1,20 Nm
  • Dimensions (H x L x W): 83mm x 60mm x 35.75mm
  • Weight: 0.15 kg
Key Features
  • Efficient contactor for power management.
  • Supports flexible and rigid conductor connections.
  • Endurance with high mechanical and electric cycles.
  • Compact size with reliable performance.
Professional Installation Requirements
  • Installation by a qualified electrician is recommended for safe and optimal performance.
Applications
  • Residential electrical installations.
  • Commercial power management solutions.
  • Industrial applications requiring reliable contactors.
Standards & Compliance
  • Conforms to AS/NZS IEC 60947-4-1.
Environmental Benefits
  • Engineered for efficient energy use in electrical systems.
  • Reduces electrical waste with long-lasting components.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

Available for immediate purchase, ideal for residential, commercial and industrial applications requiring reliable contact management.

ESC325S (ESC325S, 145 Kb) [Download]

reach_declaration_ESC325S6.pdf (reach_declaration_ESC325S6.pdf, 103 Kb) [Download]

rohs_declaration_ESC325S6.pdf (rohs_declaration_ESC325S6.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3001_09_21.pdf, 386 Kb) [Download]
