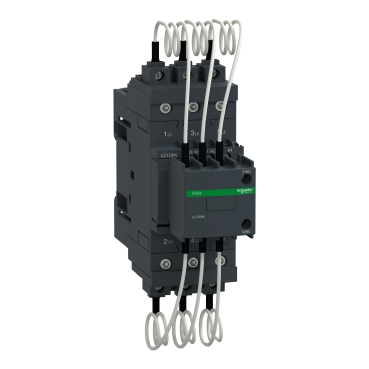

Contactor 30KVAR Coil 240V | 3-Pole Configuration | Long Electrical Life | by Clipsal
The Contactor 30KVAR Coil 240V is designed for reliable power factor correction and capacitor bank control, featuring a robust 3-pole configuration and a long electrical life of 100,000 operations. Ideal for industrial motor control panels and commercial electrical distribution, this contactor ensures efficient energy usage and compliance with AS/NZS 60947 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor 30KVAR Coil 240V | 3-Pole Configuration | Long Electrical Life | by Clipsal
Brand: Clipsal
SKU: SCHLC1DPKU7
Alternatively Known As: Power Factor Correction Contactor, 30KVAR Contactor, 240V Coil Contactor, SCHLC1DPKU7, Clipsal Capacitor Contactor
Technical Specifications
- Rated Power: 30KVAR
- Coil Voltage: 240V AC, 50Hz
- Contact Configuration: 3-pole
- Utilization Category: AC-6b (capacitor switching)
- Electrical Life: 100,000 operations
- Mechanical Life: 5,000,000 operations
- Mounting: DIN rail or panel mount
- Operating Temperature: -5°C to +40°C
- Dimensions (H x L x W): 120mm x 110mm x 90mm
- Weight: 1.2 kg
Key Features
- Rated for 30KVAR applications
- 240V 50Hz coil voltage
- Robust and reliable switching for heavy-duty loads
- Designed for power factor correction and capacitor bank control
- Long electrical and mechanical life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Power factor correction equipment
- Industrial motor control panels
- Commercial electrical distribution boards
- Capacitor bank switching
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear
Environmental Benefits
- Improves energy efficiency by enabling effective power factor correction
- Reduces energy losses in electrical systems
- Supports lower greenhouse gas emissions through optimized power usage
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Contactor 30KVAR Coil 240V 50Hz (SCHLC1DPKU7) is available for immediate purchase. Ideal for industrial and commercial power factor correction and capacitor bank applications.
