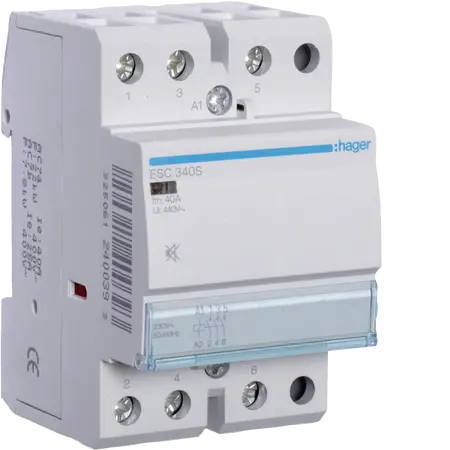

Contactor 40A 3NO | 230V AC | Humfree Technology by Hager
Contactor with 40A rated current and 3 normally open contacts—ideal for residential and commercial electrical systems. Built for noise reduction with Humfree technology, ensuring efficient control and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Humfree Contactor 40A, 3NO, 230V~50/60Hz
Brand: Hager
SKU: ESC340S
Alternatively Known As: Contactor ESC340S
Technical Specifications
- Rated current: 40 A
- Electric current: 230V AC
- Number of contacts: 3
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Number of modules: 3
- Frequency: 50 - 60 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 14,10 W
- Inrush power absorbed: 5,20 VA
- Height: 85 mm
- Width: 54 mm
- Depth: 60 mm
- Number of NO contacts: 3
- Number of NC contacts: 0
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: 0.54 kg
Key Features
- Rated current of 40A
- Features 3 normally open (NO) contacts
- Operates on 230V AC power
- Humfree technology for reduced noise operation
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure safety and compliance with local regulations.
Applications
- Residential and commercial electrical systems
- Suitable for controlling and switching electrical devices
Standards & Compliance
- Complies with relevant standards for electrical contactors in Australia
Environmental Benefits
- Humfree technology minimizes operational noise, enhancing environmental comfort
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Humfree Contactor 40A is available for immediate purchase. Ideal for residential and commercial electrical systems, ensuring efficient control and durability.
