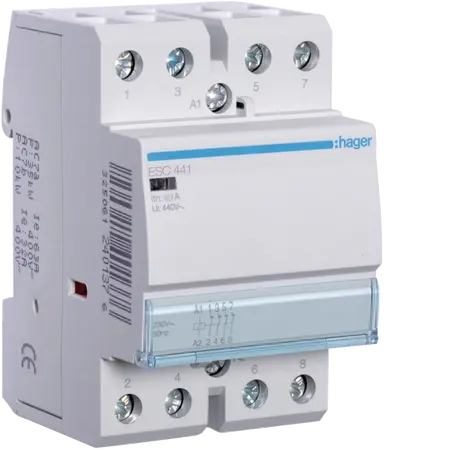

Contactor 40A 4NC | 230V 50Hz | High Electric Endurance | Hager

BRAND: :hager

SKU: ESC441

$162.90 List price: $208.30

+ −

30 Days Return Delivery Options

Contactor with 40A rating and 4NC contacts, operating at 230V 50Hz—ideal for residential and commercial electrical installations. Built for reliable switching, supporting both flexible and rigid conductor connections with high electric endurance.

Description
Attachments

Product Name/Title: Contactor 40A, 4NC, 230V~50Hz

Brand: Hager

SKU: ESC441

Alternatively Known As: Hager Contactor 40A

Technical Specifications

Type of contacts: 4NC
Number of contacts: 4
Cross-section flexible conductor: 1.5 - 16 mm²
Cross-section rigid conductor: 1.5 - 25 mm²
Rated current: 40 A
Number of modules: 3
Frequency: 50 - 50 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 440 V
Command voltage AC: 230 - 230 V
Command voltage DC: 0 - 0 V
Operating temperature: -10 - 50 °C
Storage/transport temperature: -40 - 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 12.80 W
Inrush power absorbed: 62.50 VA
Height: 85 mm
Width: 54 mm
Depth: 60 mm
Number of NO contacts: 0
Number of NC contacts: 4
With switch for manual switch: No
Dimensions (H x L x W): 85mm x 60mm x 54mm
Weight: 0.4 kg

Key Features

Reliable switching for electrical circuits
Supports flexible and rigid conductor connections
Durable with high electric endurance

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential and commercial electrical installations
Switching circuits requiring high current capability

Standards & Compliance

Complies with relevant Australian electrical standards.

Environmental Benefits

Efficient power loss management
Long-lasting mechanical operations reduce waste

Warranty Information

5 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for residential and commercial circuit switching needs.

ESC441 (ESC441, 177 Kb) [Download]

reach_declaration_ESC4411.pdf (reach_declaration_ESC4411.pdf, 103 Kb) [Download]

rohs_declaration_ESC4411.pdf (rohs_declaration_ESC4411.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3002_09_21.pdf, 387 Kb) [Download]

(DECLARATION_21_1401_05_21.pdf, 225 Kb) [Download]
