Contactor 40A 4NO | 230V 50Hz | Compact Design by Hager
Contactor with 40A rated current and 4 normally open contacts—ideal for residential, commercial, and industrial electrical installations. Built for reliable contact switching, with compact design for small spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

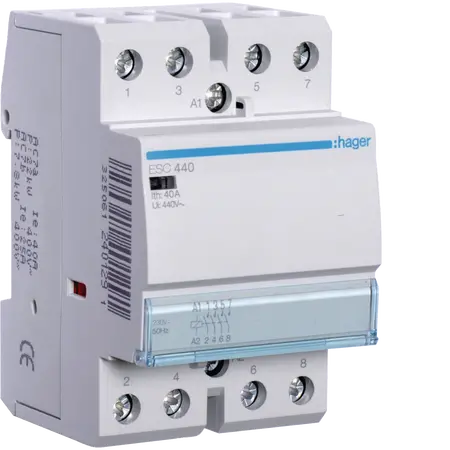

Product Name/Title: Contactor 40A, 4NO, 230V~50Hz
Brand: Hager
SKU: ESC440
Alternatively Known As: 4 Pole Contactor
Technical Specifications
- Type of contacts: 4NO
- Number of contacts: 4
- Cross-section flexible conductor: 1.5 - 16 mm²
- Cross-section rigid conductor: 1.5 - 25 mm²
- Rated current: 40 A
- Number of modules: 3
- Frequency: 50 - 50 Hz
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 440 V
- Command voltage AC: 230 - 230 V
- Command voltage DC: 0 - 0 V
- Operating temperature: -10 - 50 °C
- Storage/transport temperature: -40 - 80 °C
- Number of mechanical operations: 100000
- Electric endurance in number of cycles: 30000
- Total power loss under IN: 14.30 W
- Inrush power absorbed: 62.50 VA
- Height: 85 mm
- Width: 54 mm
- Depth: 60 mm
- Number of NO contacts: 4
- Number of NC contacts: 0
- With switch for manual switch: No
- Dimensions (H x L x W): 85mm x 60mm x 54mm
- Weight: null kg
Key Features
- 4 normally open contacts (4NO)
- Rated current of 40A
- Operates at 230V with 50 Hz frequency
- Compact design suitable for small spaces
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Residential, commercial, and industrial electrical installations
- HVAC systems
- Lighting control
Standards & Compliance
- Complies with relevant AS/NZS standards for electrical safety
Environmental Benefits
- Supports energy efficiency with reduced power loss
- Durable design for long-term use, minimizing electronic waste
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Hager Contactor 40A, 4NO, 230V~50Hz is available for immediate purchase. Ideal for residential, commercial, and industrial electrical installations requiring reliable contact switching.
