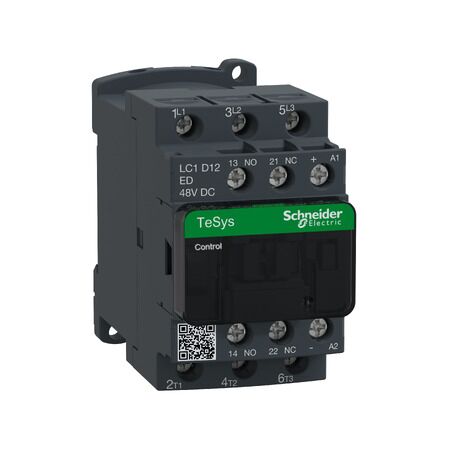

Contactor 5.5KW 3P 48VDC | 1NO & 1NC Auxiliary Contacts | High Endurance | by Clipsal
The Contactor 5.5KW 3P 48VDC is designed for efficient motor control and automation applications. With a robust 5.5kW rated power, 1 normally open and 1 normally closed auxiliary contact, and high electrical endurance of 1,000,000 cycles, it's perfect for HVAC systems and industrial automation panels. Built for reliability, this contactor ensures optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor 5.5KW 3P 48VDC | 1NO & 1NC Auxiliary Contacts | High Endurance | by Clipsal
Brand: Clipsal
SKU: SCHLC1D12ED
Alternatively Known As: Clipsal 5.5kW Contactor, 3 Pole 48VDC Contactor, SCHLC1D12ED, Industrial Motor Contactor, Clipsal LC1D12ED
Technical Specifications
- Rated operational power: 5.5kW (AC-3, 400V)
- Number of poles: 3
- Coil voltage: 48V DC
- Auxiliary contacts: 1 NO + 1 NC
- Rated operational current: 12A (AC-3, 400V)
- Electrical endurance: 1,000,000 cycles
- Mechanical endurance: 10,000,000 cycles
- Mounting: DIN rail or screw
- Operating temperature: -5°C to +60°C
- Dimensions (H x L x W): 80mm x 85mm x 45mm
- Weight: 0.4 kg
Key Features
- Rated operational power: 5.5kW (AC-3, 400V)
- 3 pole configuration
- Coil voltage: 48V DC
- 1 normally open (NO) and 1 normally closed (NC) auxiliary contact
- Compact design for easy installation
- High electrical and mechanical endurance
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Motor control circuits
- Lighting control
- HVAC systems
- Industrial automation panels
- Switchboards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enables efficient control of electrical loads, reducing unnecessary energy consumption.
- Durable design minimizes replacement frequency and electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Contactor 5.5KW 3P 48VDC 1NO 1NC (SCHLC1D12ED) is available for immediate purchase. Ideal for industrial motor control, automation panels, and HVAC systems.
