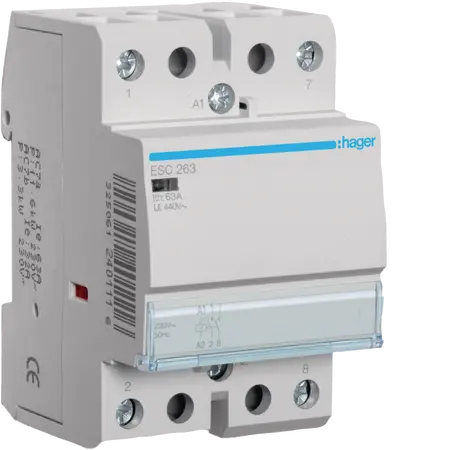

Contactor 63A 2NO | 230V 50Hz | Compact Design by Hager

BRAND: :hager

SKU: ESC263

$153.70 List price: $196.50

+ −

30 Days Return Delivery Options

Contactor with 63A rated current and 2NO contacts—ideal for industrial and commercial applications. Built for high-load operations, with compact design and 230V command voltage.

Description
Attachments

Product Name/Title: Contactor 63A, 2NO, 230V~50Hz

Brand: Hager

SKU: ESC263

Alternatively Known As: 63A Contactor

Technical Specifications

Connection Type: 2NO
Number of contacts: 2
Cross-section flexible conductor: 1.5 - 16 mm²
Cross-section rigid conductor: 1.5 - 25 mm²
Rated current: 63 A
Number of modules: 3
Frequency: 50 - 50 Hz
Rated impulse withstand voltage Uimp: 4000 V
Rated insulation voltage Ui: 440 V
Command voltage AC: 230 - 230 V
Operating temperature: -10 - 50 °C
Storage/transport temperature: -40 - 80 °C
Number of mechanical operations: 100000
Electric endurance in number of cycles: 30000
Total power loss under IN: 11.50 W
Inrush power absorbed: 62.50 VA
Dimensions (H x L x W): 85mm x 60mm x 54mm
Weight: 0.6 kg

Key Features

2 Normally Open (NO) contacts for versatile applications
Rated current of 63 A suitable for high-load operations
Compact design with a width of 54 mm and height of 85 mm
Rated impulse withstand voltage of 4000 V for improved safety

Professional Installation Requirements

Professional installation by a licensed electrician is required to ensure adherence to safety standards.

Applications

Industrial: Motor starters, lighting control
Commercial: HVAC systems, emergency lighting
Residential: Electric heating installation

Standards & Compliance

Complies with relevant AS/NZS standards for contactors

Environmental Benefits

Designed for energy-efficient operation minimizing power losses

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Contactor 63A, 2NO is available now for immediate purchase, ideal for controlling circuits in various commercial and residential applications.

ESC263 (ESC263, 169 Kb) [Download]

reach_declaration_ESC2631.pdf (reach_declaration_ESC2631.pdf, 103 Kb) [Download]

rohs_declaration_ESC2631.pdf (rohs_declaration_ESC2631.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3002_09_21.pdf, 387 Kb) [Download]

(DECLARATION_21_1401_05_21.pdf, 225 Kb) [Download]
