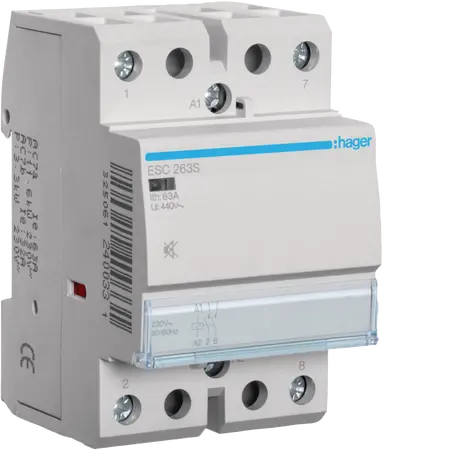

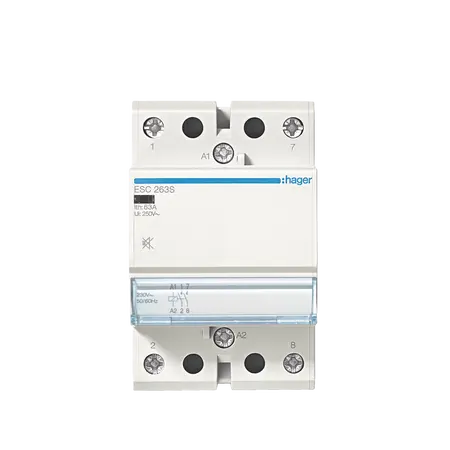

Humfree Contactor 63A, 2NO, 230V~50/60Hz

Contactor 63A 2NO | 230V 50/60Hz | High Endurance | DIN Rail by Hager

BRAND: :hager

SKU: ESC263S

$150.70 List price: $192.70

+ −

30 Days Return Delivery Options

Contactor with 63A rated current and 2 normally open contacts—ideal for industrial and commercial applications. Built for high endurance with 100,000 operations, featuring DIN rail mounting for easy installation.

Description
Attachments

Product Name/Title: Humfree Contactor 63A, 2NO, 230V~50/60Hz

Brand: Hager

SKU: ESC263S

Alternatively Known As: Hager Contactor, 63A Contactor, DIN Rail Contactor

Technical Specifications

Type of contacts: 2NO
Rated current: 63A
Rated insulation voltage: 440V
Rated impulse withstand voltage: 4000V
Frequency: 50-60Hz
Total power loss under IN: 14.50W
Inrush power absorbed: 5.20VA
Cross-section flexible conductor: 1.5 - 16 mm²
Cross-section rigid conductor: 1.5 - 25 mm²
Dimensions (H x L x W): 85mm x 60mm x 54mm
Weight: 0.5 kg

Key Features

Rated current of 63A with 2 normally open contacts.
Operating temperature range from -10 to 50 °C.
High endurance with 100,000 mechanical operations.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Suitable for controlling motors and lighting circuits.
Commercial: Ideal for HVAC systems and other electrical installations.

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Humfree Contactor 63A, 2NO, 230V~50/60Hz is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

ESC263S (ESC263S, 193 Kb) [Download]

reach_declaration_ESC263S1.pdf (reach_declaration_ESC263S1.pdf, 103 Kb) [Download]

rohs_declaration_ESC263S1.pdf (rohs_declaration_ESC263S1.pdf, 104 Kb) [Download]

(CONTACTORS.pdf, 197 Kb) [Download]

(DECLARATION_21_3002_09_21.pdf, 387 Kb) [Download]

(DECLARATION_21_1401_05_21.pdf, 225 Kb) [Download]
