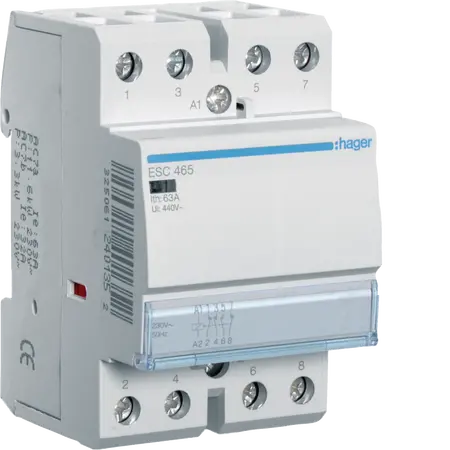

Contactor 63A 2NO+2NC 230V 50Hz High Endurance Hager
Contactor with 63A current capacity and dual NO NC contacts—ideal for industrial machinery and AC motor control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection Type: 2NC+2NO
- Number of Contacts: 4
- Cross-section Flexible Conductor: 1.5 - 16 mm²
- Cross-section Rigid Conductor: 1.5 - 25 mm²
- Rated Current: 63 A
- Number of Modules: 3
- Frequency: 50 Hz
- Rated Impulse Withstand Voltage Uimp: 4000 V
- Rated Insulation Voltage Ui: 440 V
- Command Voltage AC: 230 V
- Operating Temperature: -10 - 50 °C
- Storage/Transport Temperature: -40 - 80 °C
- Number of Mechanical Operations: 100000
- Electric Endurance in Number of Cycles: 30000
- Total Power Loss under IN: 11.50 W
- Inrush Power Absorbed: 62.50 VA
- Dimensions (H x L x W): 85mm x 54mm x 60mm
- Weight: 0.5 kg
Key Features
- High endurance with 100000 mechanical operations.
- Capability to handle 63 A current.
- Dual NO and NC contact configuration.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and performance.
Applications
- Industrial machinery control
- AC motor control
- Load management in power distribution
Standards & Compliance
- Complies with AS/NZS standards for contactors and relays.
Environmental Benefits
- Designed for energy efficiency with minimal power loss.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Contactor 63A, 2NO+2NC, 230V~50Hz is available now for immediate purchase. Ideal for industrial and commercial applications.
