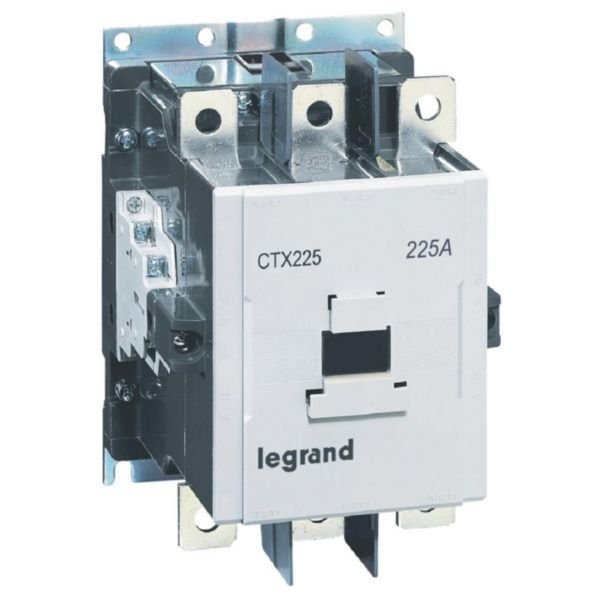

Contactor CTX3 3P 225A | 100V-240V AC | 3-Phase Motor Switching | Screw Terminals | @EA of 1 | by Legrand
The Contactor CTX3 3P 225A is engineered for reliable industrial motor control, capable of switching 3-phase motors up to 132 kW at 415V. With a rated current of 225A for AC-3 applications and screw terminals for easy installation, it's perfect for both inductive and non-inductive loads. Designed for professional installation, this contactor ensures compliance with electrical standards and is built for durability with an endurance of up to 5 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 3P 225A | 100V-240V AC | 3-Phase Motor Switching | Screw Terminals | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416296
Alternatively Known As: Legrand CTX3 Contactor, 3 Pole Motor Contactor, 225A Motor Contactor, Industrial Motor Contactor
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 85-264 V
- Rated control supply voltage DC: 85-242 V
- Voltage type for actuating: AC/DC
- Number of main contacts (NO): 3
- Number of main contacts (NC): 0
- Rated operation current AC-1 (400 V): 275 A
- Rated operation current AC-3 (400 V): 225 A
- Rated operation power AC-3 (400 V): 132 kW
- Rated operation current AC-4 (400 V): 180 A
- Rated operation power AC-4 (400 V): 90 kW
- Number of auxiliary contacts NO: 2
- Number of auxiliary contacts NC: 2
- Type of electrical connection: Screw connection
- Screw terminals capacity: Power 50mm² to 150mm², Coil 1.25mm² to 5.5mm², Aux circuit 1.25mm² to 5.5mm²
- Dimensions (H x L x W): 110mm x 120mm x 90mm
- Weight: 3.5 kg
Key Features
- Rated current 225A for AC-3 motor switching
- Switches 3-phase motors up to 132 kW at 415V
- Resistive load capacity up to 275A (AC-1)
- Screw terminals for power (50mm² to 150mm²) and coil (1.25mm² to 5.5mm²)
- 2 normally open + 2 normally closed auxiliary contacts
- NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
- Endurance up to 5 million mechanical and 1 million electrical operations
- Operation cycles up to 1200 per hour (AC-3)
- Removable front cover for visual inspection of arc chambers and contacts
- Engineered for easy coil replacement
- Compatible with all Legrand CTX3 auxiliaries and accessories
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial motor control and protection
- Tertiary and industrial electrical installations
- Switching of 3-phase motors up to 132 kW (415V)
- Switching of inductive and non-inductive loads
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance for environmental safety
- Manufactured with environmentally conscious processes
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Legrand Contactor CTX3 3P 225A 100V-240V AC / 100V-220V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
