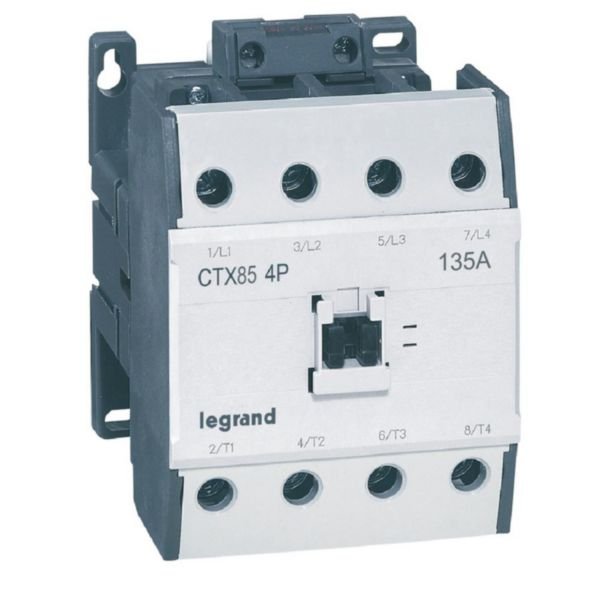

Contactor CTX3 4P 135A 230V AC | 4 Normally Open Contacts | Compact Design | Easy Coil Replacement | @Each of 1 | by Legrand
The Contactor CTX3 4P 135A 230V AC is engineered for reliable motor control in industrial and tertiary applications. With a robust rated current of 135A and four normally open contacts, it ensures efficient switching of both inductive and non-inductive loads. Designed for professional installation, this compact contactor supports up to 1800 operation cycles per hour, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 195.5-253 V
- Number of normally open main contacts: 4
- Number of normally closed main contacts: 0
- Type of electrical connection: Cable clamp
- Rated operation current Ie at AC-1, 400 V: 135 A
- Rated operation current Ie at AC-3, 400 V: 85 A
- Rated operation power at AC-3, 400 V: 45 kW
- Number of auxiliary contacts (NO/NC): 0/0
- Suitable for distribution board mounting
- Mounting: 35 mm 'top hat' rail (IEC 60715) or mounting plate
- Dimensions (H x L x W): 100mm x 70mm x 90mm
- Weight: 1.5 kg
Key Features
- Rated current 135A for switching resistive loads
- Screw terminals capacity: Power 2 x 25mm² to 50mm², Coil 0.75mm² to 2.5mm²
- Compatible with all Legrand CTX3 auxiliaries and accessories
- Endurance up to 12 million mechanical operations and 1 million electrical operations
- Supports up to 1800 operation cycles per hour (AC-1)
- Designed with environmentally conscious process and substance-restriction compliance
- Compact size for optimized cabinet space
- Easy coil replacement
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safety.
Applications
- Tertiary and industrial electrical installations
- Switching of inductive and non-inductive loads
- Motor control and protection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance to reduce environmental impact
- Manufactured using environmentally conscious processes
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on region and usage conditions.
Available Now
The Legrand Contactor CTX3 4P 135A 230V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
