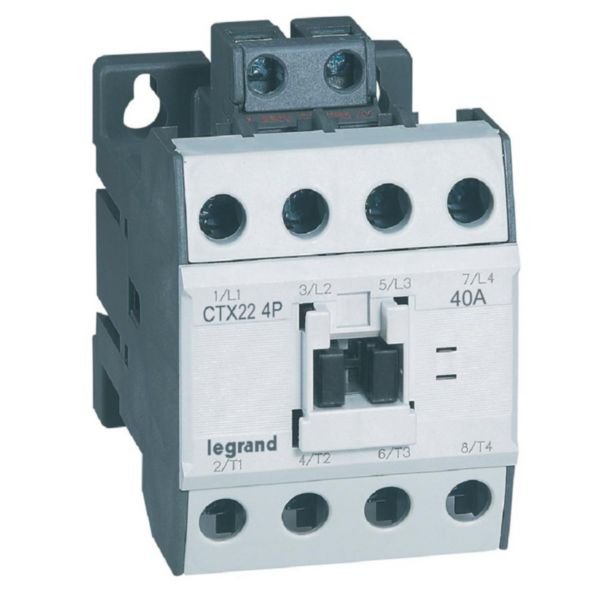

Contactor CTX3 4P 40A 230V AC | Rated Current 40A | Compact Design | Easy Coil Replacement | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 416426
$165.00 List price: $205.60
1 EA ($165.00 per EA)
+ −
30 Days Return Delivery Options
The Contactor CTX3 4P 40A 230V AC is designed for efficient motor control and protection in industrial and tertiary electrical installations. With a rated current of 40A and a compact design, it ensures reliable switching of both inductive and non-inductive loads. Built for durability, it offers up to 15 million mechanical operations, making it ideal for demanding applications.
Technical Specifications
  • Rated control supply voltage AC 50 Hz: 195.5-253 V
  • Rated control supply voltage AC 60 Hz: 195.5-253 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 4
  • Number of normally closed main contacts: 0
  • Type of electrical connection of main circuit: Cable clamp
  • Rated operation current Ie at AC-1, 400 V: 40 A
  • Rated operation current Ie at AC-3, 400 V: 22 A
  • Rated operation power at AC-3, 400 V: 11 kW
  • Number of auxiliary contacts (NO and NC): 0
  • Suitable for distribution board installation
  • Dimensions (H x L x W): 85mm x 70mm x 45mm
  • Weight: 0.5 kg
Key Features
  • Rated current 40A for switching resistive loads
  • Screw terminals capacity: Power 2 x 2.5mm² to 10mm², Coil 0.75mm² to 2.5mm²
  • Endurance up to 15 million mechanical and 1 million electrical operations
  • Number of operation cycles (AC-1) per hour: 1800
  • Compatible with all Legrand CTX3 auxiliaries and accessories
  • Compact size for optimized cabinet space
  • Easy coil replacement design
Professional Installation Requirements
  • Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial electrical installations
  • Switching of inductive and non-inductive loads
  • Motor control and protection in distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance and environmentally conscious manufacturing processes
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand warranty terms.

Available Now

The Legrand Contactor CTX3 4P 40A 230V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.

LE07393AB (LE07393AB.pdf, 3,235 Kb) [Download]

F01991FR-04 (F01991FR-04.pdf, 3,116 Kb) [Download]

F01991EN-04 (F01991EN-04_.pdf, 3,043 Kb) [Download]

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0294-0295 (ex223001_0294-0295.pdf, 754 Kb) [Download]

ex223001_0292-0293 (ex223001_0292-0293.pdf, 607 Kb) [Download]

ex223001_0285 (ex223001_0285.pdf, 119 Kb) [Download]

LGRP-01360-V01-01-FR (LGRP-01360-V01-01-FR.pdf, 578 Kb) [Download]

LGRP-01361-V01-01-FR (LGRP-01361-V01-01-FR.pdf, 580 Kb) [Download]
