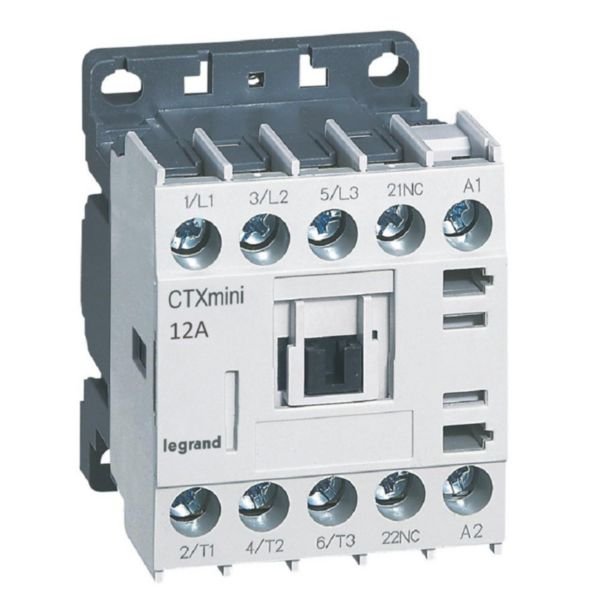

Contactor CTX3 Mini 3P 12A 1NC 110V AC | 12A Rated Current | Compact Design | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417054
$68.00 List price: $84.80
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A 1NC 110V AC is perfect for switching 3-phase motors up to 5.5 kW, making it ideal for industrial and tertiary applications. With a rated current of 12A and a compact design for optimized cabinet space, this contactor ensures reliable performance and compliance with electrical standards. Designed for easy installation on a 35 mm top hat rail, it features a normally closed auxiliary contact for added functionality.

Product Name/Title: Contactor CTX3 Mini 3P 12A 1NC 110V AC | 12A Rated Current | Compact Design | @Each of 1 | by Legrand

Brand: Legrand

SKU: 417054

Alternatively Known As: Mini Contactor 3P 12A, Legrand CTX3 Contactor, 3 Pole Motor Contactor, 110V AC Contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 93.5-121 V
  • Number of main contacts: 3 normally open (NO), 0 normally closed (NC)
  • Number of auxiliary contacts: 1 normally closed (NC)
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Type of electrical connection: Cable clamp
  • Suitable for mounting on 35 mm top hat rail (IEC 60715) or mounting plate
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: up to 12 million mechanical and 1 million electrical operations
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 12A (AC-3) for 3-phase motor switching
  • Resistive load switching up to 20A (AC-1)
  • 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Operation cycles up to 1800 per hour (AC-3)
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 5.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with environmentally conscious processes
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 12A 1NC 110V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
