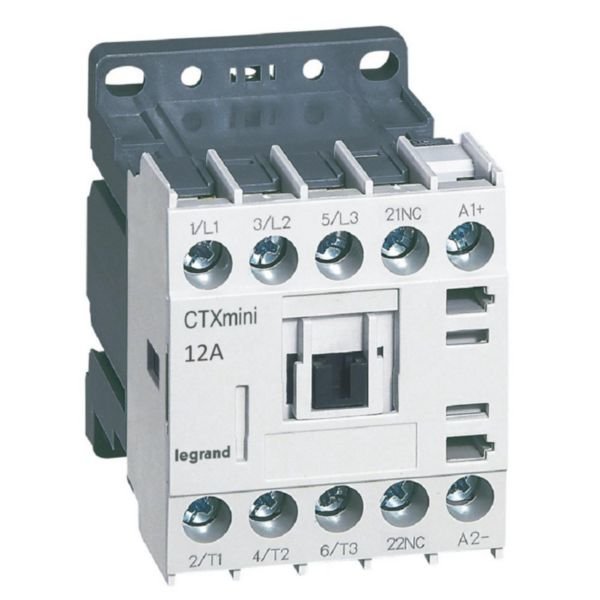

Contactor CTX3 Mini 3P 12A 1NC 24V DC | 12A Rated Current | Compact Design | Screw Terminals | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417051
$95.10 List price: $118.50
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A 1NC 24V DC is designed for efficient motor control, featuring a 12A rated current and compact design. Ideal for industrial and tertiary applications, it supports switching of 3-phase motors up to 5.5 kW and includes screw terminals for easy installation. With a robust endurance of up to 12 million mechanical operations, this contactor ensures reliable performance in demanding environments.

Product Name/Title: Contactor CTX3 Mini 3P 12A 1NC 24V DC | 12A Rated Current | Compact Design | Screw Terminals | @Each of 1 | by Legrand

Brand: Legrand

SKU: 417051

Alternatively Known As: Mini Contactor 3P 12A 24V DC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 12 Amp DC Coil

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V DC
  • Number of main contacts: 3 normally open (NO), 0 normally closed (NC)
  • Number of auxiliary contacts: 0 NO, 1 NC
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Type of electrical connection: Cable clamp
  • Suitable for mounting on 35 mm top hat rail (IEC 60715) or mounting plate
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 12A (AC-3) for switching 3-phase motors up to 5.5 kW at 415V
  • Resistive loads up to 20A (AC-1)
  • 1 normally closed (NC) auxiliary contact compliant with IEC 60947-4-1
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Operation cycles up to 1800 per hour (AC-3)
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
  • Environmentally conscious design and substance-restriction compliant
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical standards and safety regulations.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 5.5 kW (415V)
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured through environmentally conscious processes
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 12A 1NC 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
