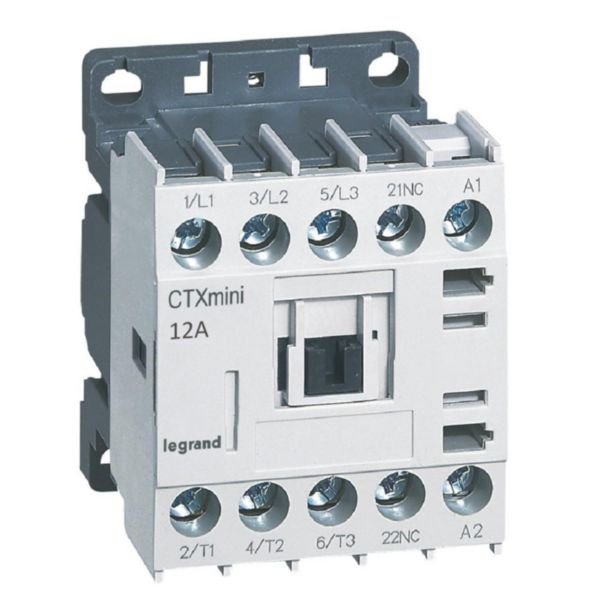

Contactor CTX3 Mini 3P 12A 1NC 415V AC | 5.5 kW Power | 1800 Operation Cycles | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417059
$68.00 List price: $84.80
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A 1NC 415V AC is designed for efficient motor control, capable of switching inductive loads up to 5.5 kW. With a robust endurance of 12 million mechanical operations and 1 million electrical operations, it's perfect for industrial applications. This compact contactor features screw terminals for easy installation and is compliant with IEC standards, making it a reliable choice for your electrical needs.

Product Name/Title: Contactor CTX3 Mini 3P 12A 1NC 415V AC | 5.5 kW Power | 1800 Operation Cycles | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417059

Alternatively Known As: Mini Contactor 3P 12A, Legrand CTX3 Motor Contactor, 3 Pole Contactor 12 Amp, Industrial Motor Contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
  • Number of main contacts: 3 normally open (NO), 0 normally closed (NC)
  • Number of auxiliary contacts: 1 normally closed (NC)
  • Rated operation current AC-1 (400 V): 20 A
  • Rated operation current AC-3 (400 V): 12 A
  • Rated operation power AC-3 (400 V): 5.5 kW
  • Type of electrical connection: Cable clamp
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: 12 million mechanical, 1 million electrical operations
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 12A for AC-3 motor switching up to 5.5 kW at 415V
  • Resistive load switching up to 20A (AC-1)
  • 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Supports up to 1800 operation cycles per hour (AC-3)
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail or mounting plate
  • Compatible with all Legrand CTX3 mini auxiliaries and accessories
  • Environmentally conscious design and substance-restriction compliant
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following all relevant safety standards and manufacturer instructions.
Applications
  • Tertiary and industrial installations
  • Switching of inductive and non-inductive loads
  • Control of 3-phase motors up to 5.5 kW at 415V
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured through environmentally conscious processes
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 12A 1NC 415V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
