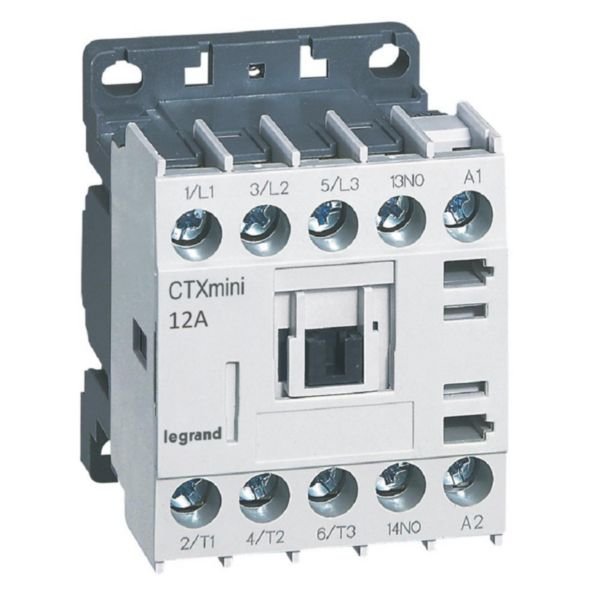

Contactor CTX3 Mini 3P 12A 1NO 110V AC | 12A Rated Current | Compact Design | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 12A 1NO 110V AC is perfect for controlling 3-phase motors up to 5.5 kW, making it ideal for industrial and tertiary applications. With a rated current of 12A and a compact design, it optimizes cabinet space while ensuring reliable performance. This contactor features screw terminals for easy installation and can endure up to 12 million mechanical operations, ensuring longevity and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 12A 1NO 110V AC | 12A Rated Current | Compact Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417044
Alternatively Known As: Mini Contactor 3P 12A, Legrand CTX3 Contactor, 3 Pole Contactor 12 Amp, Motor Contactor 110V AC
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 93.5-121 V
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 12 A
- Rated operation power at AC-3, 400 V: 5.5 kW
- Number of auxiliary contacts normally open: 1
- Number of auxiliary contacts normally closed: 0
- Type of electrical connection: Cable clamp
- Number of operation cycles (AC-3) per hour: 1800
- Endurance: up to 12 million mechanical and 1 million electrical operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated current 12A (AC-3) for 3-phase motors up to 5.5 kW
- Resistive loads up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Can be equipped with Legrand CTX3 mini auxiliaries and accessories
- Compact size for optimized cabinet space
- Fixing on 35 mm 'top hat' mounting rail (IEC 60715) or mounting plate
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 5.5 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
The Legrand Contactor CTX3 Mini 3P 12A 1NO 110V AC is available now for immediate purchase. Ideal for industrial and tertiary motor control applications.
