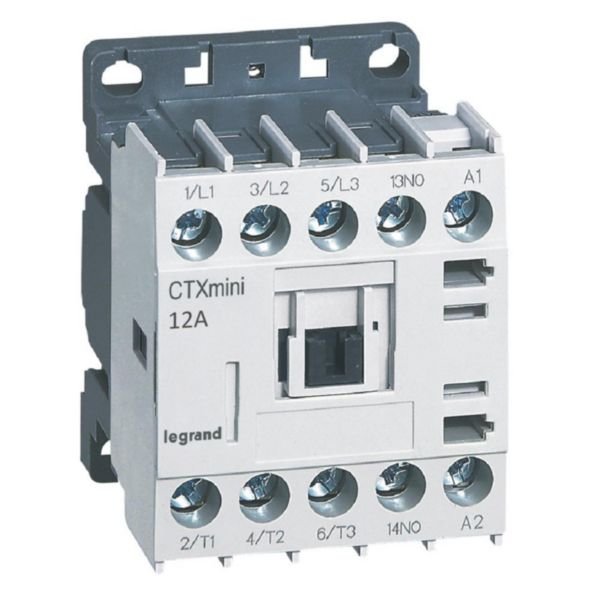

Contactor CTX3 Mini 3P 12A 1NO 230V AC | 12A Rated Current | 3 Phase Motor Switching | Compact Design | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 417046
$68.00 List price: $84.80
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A 1NO 230V AC is designed for efficient motor control, featuring a rated current of 12A for 3-phase motors and a compact design that optimizes cabinet space. Ideal for industrial and tertiary applications, it ensures reliable switching of inductive and non-inductive loads, with an endurance of up to 12 million mechanical operations.

Product Name/Title: Contactor CTX3 Mini 3P 12A 1NO 230V AC | 12A Rated Current | 3 Phase Motor Switching | Compact Design | @Each of 1 | by Legrand

Brand: Legrand

SKU: 417046

Alternatively Known As: Mini Contactor 3P 12A, Legrand CTX3 Contactor, 3 Phase Motor Contactor, 230V AC Contactor

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 195.5-253 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Number of auxiliary contacts normally open: 1
  • Number of auxiliary contacts normally closed: 0
  • Type of electrical connection of main circuit: Cable clamp
  • Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Aux. Circuit 0.75mm² to 2.5mm²
  • Endurance: up to 12 million mechanical operations and 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 12A (AC-3) for 3-phase motor switching
  • Resistive loads up to 20A (AC-1)
  • 1 normally open auxiliary contact
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 5.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.

Available Now

The Legrand Contactor CTX3 Mini 3P 12A 1NO 230V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
