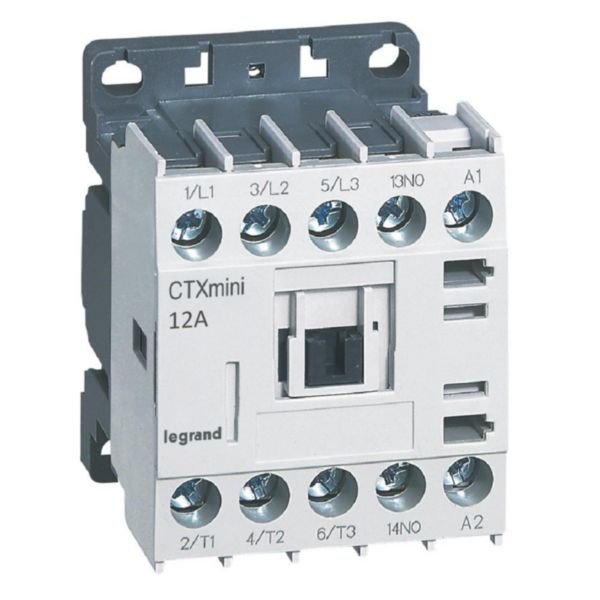

Contactor CTX3 Mini 3P 12A 1NO 24V AC | 12A Rated Current | 3 Normally Open Contacts | Compact Design | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417040
$68.00 List price: $84.80
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A 1NO 24V AC is designed for efficient motor control in industrial and tertiary applications. With a rated current of 12A and three normally open contacts, it supports 3-phase motors up to 5.5 kW. Its compact design optimizes cabinet space, making it ideal for distribution boards and various electrical installations.

Product Name/Title: Contactor CTX3 Mini 3P 12A 1NO 24V AC | 12A Rated Current | 3 Normally Open Contacts | Compact Design | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417040

Alternatively Known As: Mini Contactor 3P 12A 24V AC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 12 Amp 24 Volt AC

Technical Specifications
  • Rated control supply voltage AC 50/60 Hz: 20.4-26.4 V
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Number of auxiliary contacts normally open: 1
  • Number of auxiliary contacts normally closed: 0
  • Type of electrical connection: Cable clamp
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: up to 12 million mechanical and 1 million electrical operations
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 12A (AC-3) for 3-phase motors up to 5.5 kW
  • Resistive loads up to 20A (AC-1)
  • 1 normally open auxiliary contact
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Can be equipped with Legrand CTX3 mini auxiliaries and accessories
  • Compact size for optimized cabinet space
  • Fixing on 35 mm 'top hat' mounting rail (IEC 60715) or mounting plate
Professional Installation Requirements
  • Installation by a qualified electrician is recommended. Follow all safety instructions and use only Legrand branded accessories.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 5.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce harmful materials
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 12A 1NO 24V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
