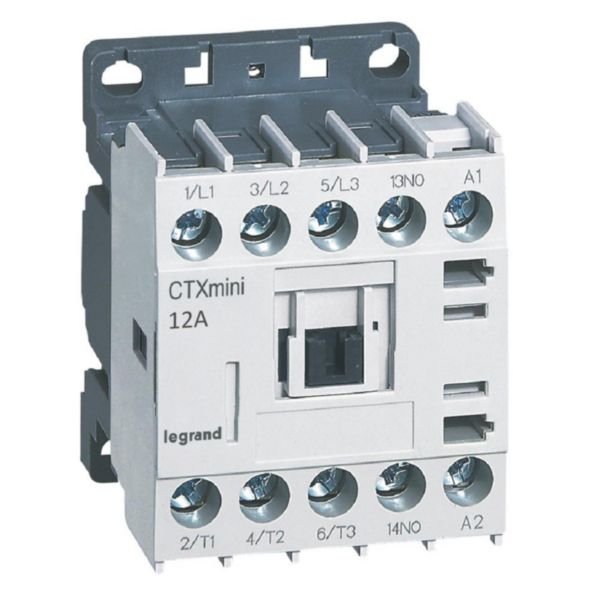

Contactor CTX3 Mini 3P 12A | 1NO | 415V AC | Compact Design | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417049
$68.00 List price: $84.80
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A is designed for efficient motor control, capable of handling 3-phase motors up to 5.5 kW at 415V. With a compact design and 1 normally open auxiliary contact, it's perfect for industrial and tertiary applications. Built for durability, it offers an endurance of up to 12 million mechanical operations, ensuring reliable performance in demanding environments.

Product Name/Title: Contactor CTX3 Mini 3P 12A | 1NO | 415V AC | Compact Design | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417049

Alternatively Known As: Mini Contactor 3P 12A, Legrand CTX3 Motor Contactor, 3 Pole Contactor 12 Amp, Industrial Motor Contactor

Technical Specifications
  • Rated control supply voltage AC 50 Hz: 352.75-456.5 V
  • Rated control supply voltage AC 60 Hz: 352.75-456.5 V
  • Voltage type for actuating: AC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Number of auxiliary contacts as normally open contact: 1
  • Number of auxiliary contacts as normally closed contact: 0
  • Type of electrical connection of main circuit: Cable clamp
  • Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Aux. Circuit 0.75mm² to 2.5mm²
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: up to 12 million mechanical operations and 1 million electrical operations
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 12A (AC-3) for 3-phase motors up to 5.5 kW at 415V
  • Resistive loads up to 20A (AC-1)
  • 1 normally open auxiliary contact
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Can be equipped with all Legrand CTX3 mini auxiliaries and accessories
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 5.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.

Available Now

Legrand Contactor CTX3 Mini 3P 12A 1NO 415V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
