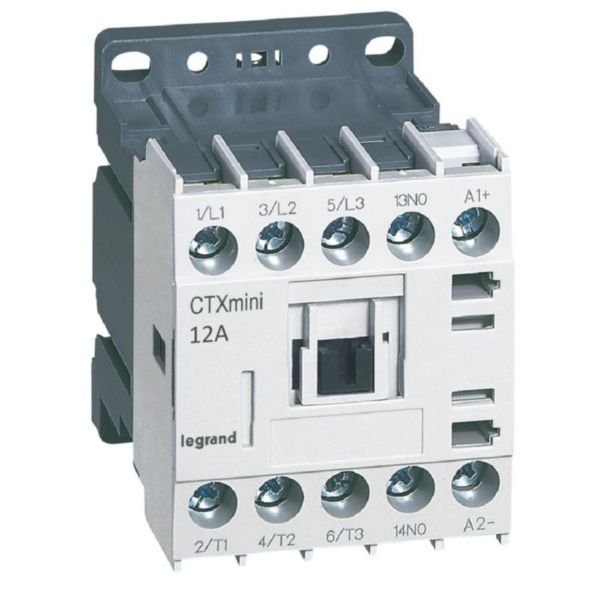

Contactor CTX3 Mini 3P 12A 24V DC | 3 Normally Open Contacts | 1 Auxiliary Contact | by Legrand

BRAND: Legrand
SKU: 417041
$95.10 List price: $118.50
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 12A 24V DC is designed for efficient motor control in industrial and tertiary applications. With a rated current of 12A and three normally open contacts, it ensures reliable switching for 3-phase motors up to 5.5 kW. Built for durability, it offers an impressive endurance of up to 12 million mechanical operations, making it a perfect choice for demanding environments.

Product Name/Title: Contactor CTX3 Mini 3P 12A 24V DC | 3 Normally Open Contacts | 1 Auxiliary Contact | by Legrand

Brand: Legrand

SKU: 417041

Alternatively Known As: Mini Contactor 3P 12A 24V DC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 12 Amp DC Coil

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V DC
  • Voltage type for actuating: DC
  • Number of normally open main contacts: 3
  • Number of normally closed main contacts: 0
  • Rated operation current AC-1 (400 V): 20 A
  • Rated operation current AC-3 (400 V): 12 A
  • Rated operation power AC-3 (400 V): 5.5 kW
  • Number of auxiliary contacts normally open: 1
  • Number of auxiliary contacts normally closed: 0
  • Type of electrical connection: Cable clamp
  • Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Auxiliary circuit 0.75mm² to 2.5mm²
  • Endurance: 12 million mechanical operations, 1 million electrical operations
  • Operation cycles per hour (AC-3): 1800
  • Dimensions (H x L x W): 70mm x 60mm x 45mm
  • Weight: 0.2 kg
Key Features
  • Rated current 12A for AC-3 motor switching
  • Switches 3 normally open main contacts
  • 1 normally open auxiliary contact
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Number of operation cycles (AC-3) per hour: 1800
  • Screw terminals for power, coil, and auxiliary circuits
  • Compact size for optimized cabinet space
  • Can be fixed on 35 mm 'top hat' mounting rail (IEC 60715) or mounting plate
Professional Installation Requirements
  • Installation should be performed by a qualified electrician following the product instructions and using only Legrand branded accessories.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 5.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with substance-restriction compliance
  • Manufactured through environmentally conscious processes
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand warranty terms for details.

Available Now

The Legrand Contactor CTX3 Mini 3P 12A 1NO 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
