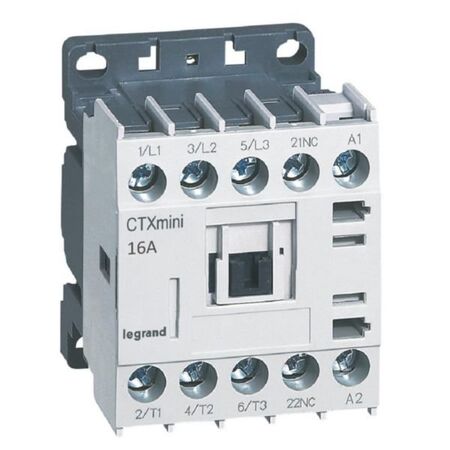

Contactor CTX3 Mini 3P 16A 1NC 110V AC | 12 Million Mechanical Operations | Compact Design | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 16A 1NC 110V AC is perfect for switching 3-phase motors up to 7.5 kW, making it ideal for industrial and tertiary applications. With a robust design that supports up to 12 million mechanical operations, this contactor features screw terminals for easy installation and is compliant with IEC standards, ensuring reliability and safety in your electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50 Hz: 93.5-121 V
- Rated control supply voltage AC 60 Hz: 93.5-121 V
- Voltage type for actuating: AC
- Number of normally closed main contacts: 0
- Number of normally open main contacts: 3
- Type of electrical connection of main circuit: Cable clamp
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 16 A
- Rated operation power at AC-3, 400 V: 7.5 kW
- Number of auxiliary contacts normally open: 0
- Number of auxiliary contacts normally closed: 1
- Suitable for distribution board: Yes
- Screw terminals capacity: Power 2 x 1.25mm² to 2mm², Coil 0.75mm² to 2.5mm², Aux. Circuit 0.75mm² to 2.5mm²
- Endurance: up to 12 million mechanical operations and 1 million electrical operations
- Number of operation cycles (AC-3) per hour: 1800
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated current 16A (AC-3) for 3-phase motors up to 7.5 kW
- Resistive loads up to 20A (AC-1)
- 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Operation cycles up to 1800 per hour (AC-3)
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
- Environmentally conscious design and substance-restriction compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician following all relevant safety standards and manufacturer instructions.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 7.5 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance to reduce environmental impact
- Manufactured through an environmentally conscious process
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's official warranty policy for details.
Available Now
The Legrand Contactor CTX3 Mini 3P 16A 1NC 110V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
