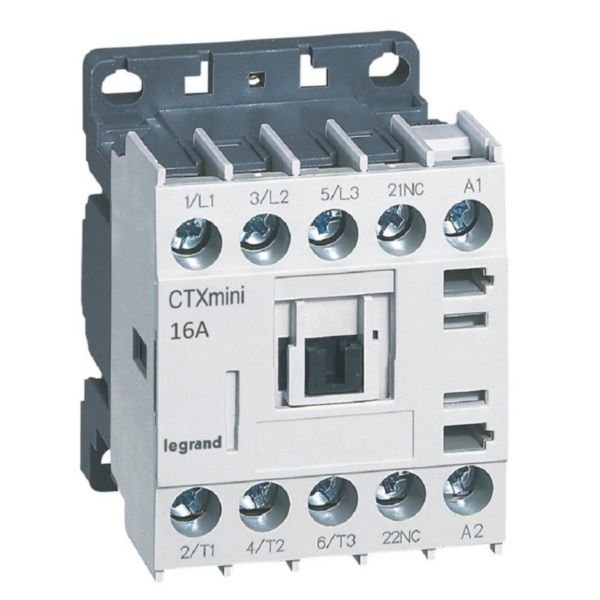

Contactor CTX3 Mini 3P 16A 1NC 24V AC | 12 Million Mechanical Operations | Compact Size | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 417070
$73.80 List price: $92.00
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 16A 1NC 24V AC is designed for efficient motor control in industrial and tertiary applications. With a rated current of 16A for AC-3 motor switching and a compact design, it optimizes cabinet space while ensuring reliable performance. Ideal for switching 3-phase motors up to 7.5 kW, this contactor features a normally closed auxiliary contact and is built for durability with up to 12 million mechanical operations.

Product Name/Title: Contactor CTX3 Mini 3P 16A 1NC 24V AC | 12 Million Mechanical Operations | Compact Size | @EA of 1 | by Legrand

Brand: Legrand

SKU: 417070

Alternatively Known As: Mini Contactor 3P 16A 24V AC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 16 Amp 24V Coil

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V AC 50/60 Hz
  • Number of main contacts: 3 normally open, 0 normally closed
  • Number of auxiliary contacts: 1 normally closed
  • Rated operation current AC-1 (400 V): 20 A
  • Rated operation current AC-3 (400 V): 16 A
  • Rated operation power AC-3 (400 V): 7.5 kW
  • Electrical connection: Cable clamp
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: 12 million mechanical, 1 million electrical operations
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 16A for AC-3 motor switching and 20A for resistive loads (AC-1)
  • 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Compact size for optimized cabinet space
  • Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
  • Installation by a qualified electrician is required. Follow all safety instructions and use only Legrand branded accessories.
Applications
  • Tertiary and industrial electrical installations
  • Switching of 3-phase motors up to 7.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

Legrand Contactor CTX3 Mini 3P 16A 1NC 24V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
