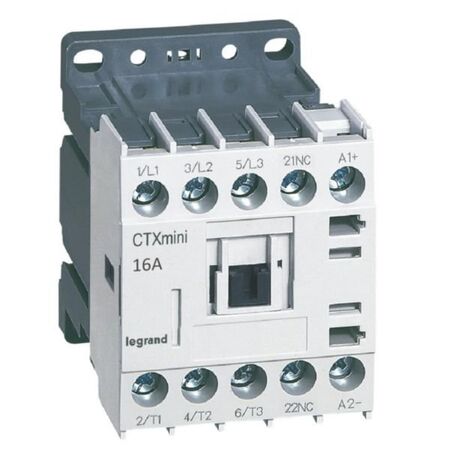

Contactor CTX3 Mini 3P 16A 1NC 24V DC | 1NC Auxiliary Contact | Compact Design | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 16A 1NC 24V DC is perfect for controlling 3-phase motors up to 7.5 kW, making it ideal for industrial and tertiary applications. With a rated current of 16A for AC-3 motor switching and a compact design, it optimizes cabinet space while ensuring reliable performance. This contactor features a normally closed auxiliary contact and is built for endurance, capable of handling up to 12 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 16A 1NC 24V DC | 1NC Auxiliary Contact | Compact Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417071
Alternatively Known As: Mini Contactor 3P 16A 24V DC, Legrand CTX3 Motor Contactor, 3 Pole Contactor 16 Amp 24V DC
Technical Specifications
- Rated control supply voltage: 20.4-26.4 V DC
- Number of normally open main contacts: 3
- Number of normally closed main contacts: 0
- Number of auxiliary contacts normally closed: 1
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 16 A
- Rated operation power at AC-3, 400 V: 7.5 kW
- Type of electrical connection: Cable clamp
- Suitable for mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated current 16A for AC-3 motor switching and 20A for resistive loads (AC-1)
- 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
- Endurance up to 12 million mechanical and 1 million electrical operations
- Number of operation cycles (AC-3) per hour: 1800
- Compact size for optimized cabinet space
- Screw terminals for power, coil, and auxiliary circuits
- Can be equipped with Legrand CTX3 mini auxiliaries and accessories
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 7.5 kW (415V)
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements to reduce harmful materials
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
The Legrand Contactor CTX3 Mini 3P 16A 1NC 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
