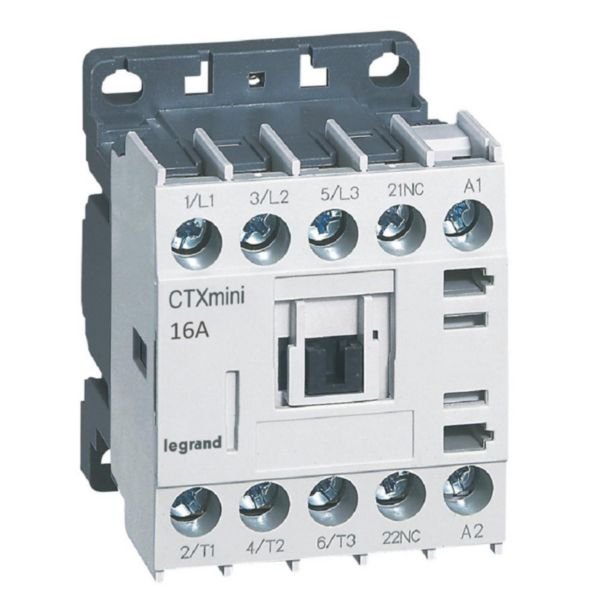

Contactor CTX3 Mini 3P 16A 1NC 415V AC | 12 Million Mechanical Operations | Compact Design | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 16A 1NC 415V AC is designed for efficient motor control in industrial applications, capable of switching inductive loads up to 7.5 kW. With a robust endurance of 12 million mechanical operations and a compact design for optimized cabinet space, it's perfect for tertiary installations and distribution boards, ensuring reliable performance and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Contactor CTX3 Mini 3P 16A 1NC 415V AC | 12 Million Mechanical Operations | Compact Design | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417079
Alternatively Known As: Mini Contactor 3P 16A, Legrand CTX3 Motor Contactor, 3 Pole Contactor 16 Amp, Industrial Motor Contactor
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 352.75-456.5 V
- Number of main contacts: 3 normally open (NO), 0 normally closed (NC)
- Number of auxiliary contacts: 1 normally closed (NC)
- Rated operation current Ie at AC-1, 400 V: 20 A
- Rated operation current Ie at AC-3, 400 V: 16 A
- Rated operation power at AC-3, 400 V: 7.5 kW
- Type of electrical connection: Cable clamp
- Suitable for mounting on 35 mm top hat rail or mounting plate
- Number of operation cycles (AC-3) per hour: 1800
- Endurance: 12 million mechanical, 1 million electrical operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated current 16A for AC-3 motor switching up to 7.5 kW at 415V
- Resistive load switching up to 20A (AC-1)
- 1 normally closed auxiliary contact (NC) compliant with IEC 60947-4-1
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Supports up to 1800 operation cycles per hour (AC-3)
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail (IEC 60715) or mounting plate
- Compatible with all Legrand CTX3 mini auxiliaries and accessories
- Environmentally conscious design and substance-restriction compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician following Legrand instructions and using only Legrand branded accessories.
Applications
- Tertiary and industrial installations
- Switching of inductive and non-inductive loads
- Control of 3-phase motors up to 7.5 kW at 415V
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance to reduce environmental impact
- Manufactured through environmentally conscious processes
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Contactor CTX3 Mini 3P 16A 1NC 415V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
