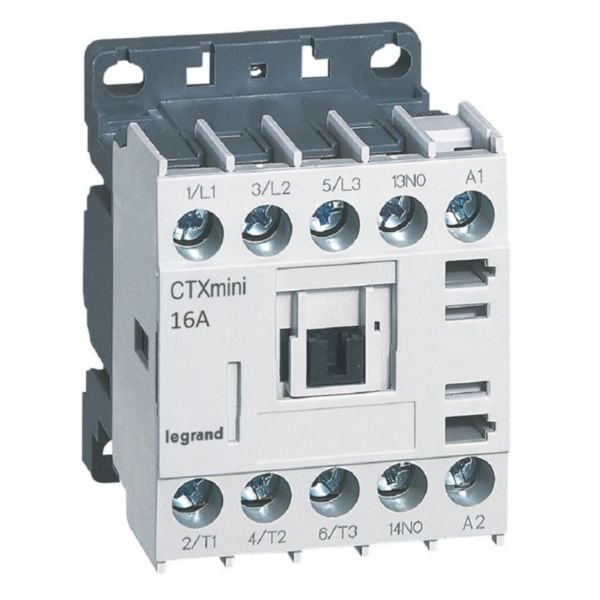

Contactor CTX3 Mini 3P 16A 1NO 110V AC | 12 Million Mechanical Operations | Compact Design | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 16A 1NO 110V AC is perfect for industrial and tertiary motor control applications, featuring a high endurance of 12 million mechanical operations and a compact design for optimized cabinet space. With a rated current of 16A for AC-3 motor switching, it ensures reliable performance in switching 3-phase motors up to 7.5 kW. Ideal for qualified electricians, this contactor is compatible with all Legrand CTX3 mini auxiliaries and accessories.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage: 93.5-121 V AC 50/60 Hz
- Number of main contacts: 3 normally open
- Number of auxiliary contacts: 1 normally open
- Rated operation current AC-1 (400 V): 20 A
- Rated operation current AC-3 (400 V): 16 A
- Rated operation power AC-3 (400 V): 7.5 kW
- Electrical connection: Cable clamp
- Mounting: 35 mm top hat rail (IEC 60715) or mounting plate
- Endurance: 12 million mechanical, 1 million electrical operations
- Operation cycles per hour (AC-3): 1800
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.3 kg
Key Features
- Rated current 16A for AC-3 motor switching
- Switching capacity for resistive loads up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- High operation cycle rate: 1800 cycles per hour (AC-3)
- Compact size for optimized cabinet space
- Compatible with all Legrand CTX3 mini auxiliaries and accessories
Professional Installation Requirements
- Installation by a qualified electrician is recommended. Follow all instructions and use only Legrand branded accessories for safety and compliance.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 7.5 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with environmentally conscious processes
- Complies with substance-restriction requirements to reduce hazardous materials
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
Legrand Contactor CTX3 Mini 3P 16A 1NO 110V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
