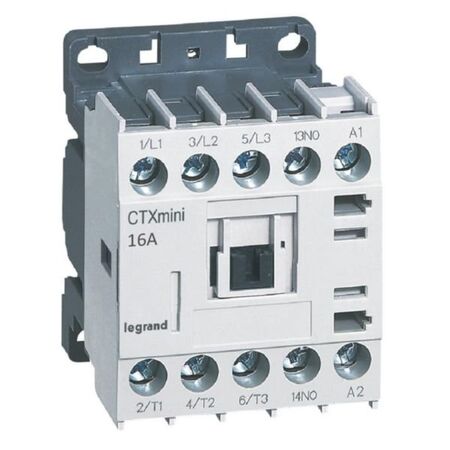

Contactor CTX3 Mini 3P 16A 1NO 24V AC | 12 Million Mechanical Operations | Compact Size | @EA of 1 | by Legrand
The Contactor CTX3 Mini 3P 16A 1NO 24V AC is designed for efficient motor control in industrial and tertiary applications. With a rated current of 16A for 3-phase motors up to 7.5 kW and a compact design, it optimizes cabinet space while ensuring reliable performance. Ideal for switching inductive and non-inductive loads, this contactor is built for durability with an endurance of up to 12 million mechanical operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated control supply voltage AC 50/60 Hz: 20.4-26.4 V
- Number of main contacts (normally open): 3
- Number of auxiliary contacts (normally open): 1
- Rated operation current AC-1 (400 V): 20 A
- Rated operation current AC-3 (400 V): 16 A
- Rated operation power AC-3 (400 V): 7.5 kW
- Type of electrical connection: Cable clamp
- Number of operation cycles (AC-3) per hour: 1800
- Endurance: 12 million mechanical, 1 million electrical operations
- Dimensions (H x L x W): 70mm x 60mm x 45mm
- Weight: 0.15 kg
Key Features
- Rated current 16A (AC-3) for 3-phase motors up to 7.5 kW
- Resistive loads up to 20A (AC-1)
- 1 normally open auxiliary contact
- Screw terminals for power, coil, and auxiliary circuits
- Endurance up to 12 million mechanical and 1 million electrical operations
- Can be equipped with all Legrand CTX3 mini auxiliaries and accessories
- Compact size for optimized cabinet space
- Mounting on 35 mm 'top hat' rail or mounting plate
Professional Installation Requirements
- Installation by a qualified electrician is required. Follow manufacturer instructions and use only Legrand branded accessories.
Applications
- Tertiary and industrial installations
- Switching of 3-phase motors up to 7.5 kW (415V)
- Switching of inductive and non-inductive loads
- Suitable for distribution boards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed with substance-restriction compliance
- Manufactured through environmentally conscious processes
- Long operational life reduces waste and replacement frequency
Warranty Information
Standard Legrand warranty applies; typically 2 years against manufacturing defects.
Available Now
The Legrand Contactor CTX3 Mini 3P 16A 1NO 24V AC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
