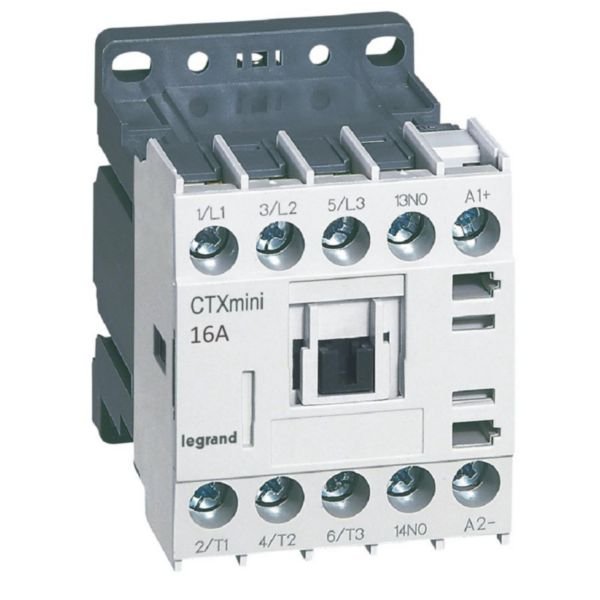

Contactor CTX3 Mini 3P 16A 1NO 24V DC | Rated for 7.5 kW | Compact Design | by Legrand

BRAND: Legrand
SKU: 417061
$104.80 List price: $130.70
+ −
30 Days Return Delivery Options
The Contactor CTX3 Mini 3P 16A 1NO 24V DC is perfect for controlling 3-phase motors up to 7.5 kW, making it ideal for industrial and tertiary applications. With a rated current of 16A and a compact design, it ensures efficient operation and space optimization in distribution boards. Built for durability, it offers up to 12 million mechanical operations, ensuring long-lasting performance.

Product Name/Title: Contactor CTX3 Mini 3P 16A 1NO 24V DC | Rated for 7.5 kW | Compact Design | by Legrand

Brand: Legrand

SKU: 417061

Alternatively Known As: Mini Contactor 3P 16A, Legrand CTX3 Motor Contactor, 24V DC Contactor, Industrial Motor Contactor

Technical Specifications
  • Rated control supply voltage: 20.4-26.4 V DC
  • Number of main contacts (normally open): 3
  • Number of auxiliary contacts (normally open): 1
  • Rated operation current AC-1 (400 V): 20 A
  • Rated operation current AC-3 (400 V): 16 A
  • Rated operation power AC-3 (400 V): 7.5 kW
  • Type of electrical connection: Cable clamp
  • Number of normally closed main contacts: 0
  • Number of normally closed auxiliary contacts: 0
  • Number of operation cycles (AC-3) per hour: 1800
  • Endurance: up to 12 million mechanical and 1 million electrical operations
  • Dimensions (H x L x W): 80mm x 70mm x 45mm
  • Weight: 0.3 kg
Key Features
  • Rated current 16A (AC-3) for 3-phase motors up to 7.5 kW
  • Resistive loads up to 20A (AC-1)
  • 1 normally open auxiliary contact
  • Screw terminals for power, coil, and auxiliary circuits
  • Endurance up to 12 million mechanical and 1 million electrical operations
  • Can be equipped with all Legrand CTX3 mini auxiliaries and accessories
  • Compact size for optimized cabinet space
  • Fixing on 35 mm 'top hat' mounting rail (IEC 60715) or mounting plate
Professional Installation Requirements
  • Installation by a qualified electrician is recommended. Follow all instructions and use only Legrand branded accessories for safety and compliance.
Applications
  • Tertiary and industrial installations
  • Switching of 3-phase motors up to 7.5 kW (415V)
  • Switching of inductive and non-inductive loads
  • Suitable for distribution boards
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand Contactor CTX3 Mini 3P 16A 1NO 24V DC is available for immediate purchase, ideal for industrial and tertiary motor control applications.
